CVT Transaxle - Service Information
>>
General Description
>>
Components With Torque Specifications
>>
Forward Clutch Assembly
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

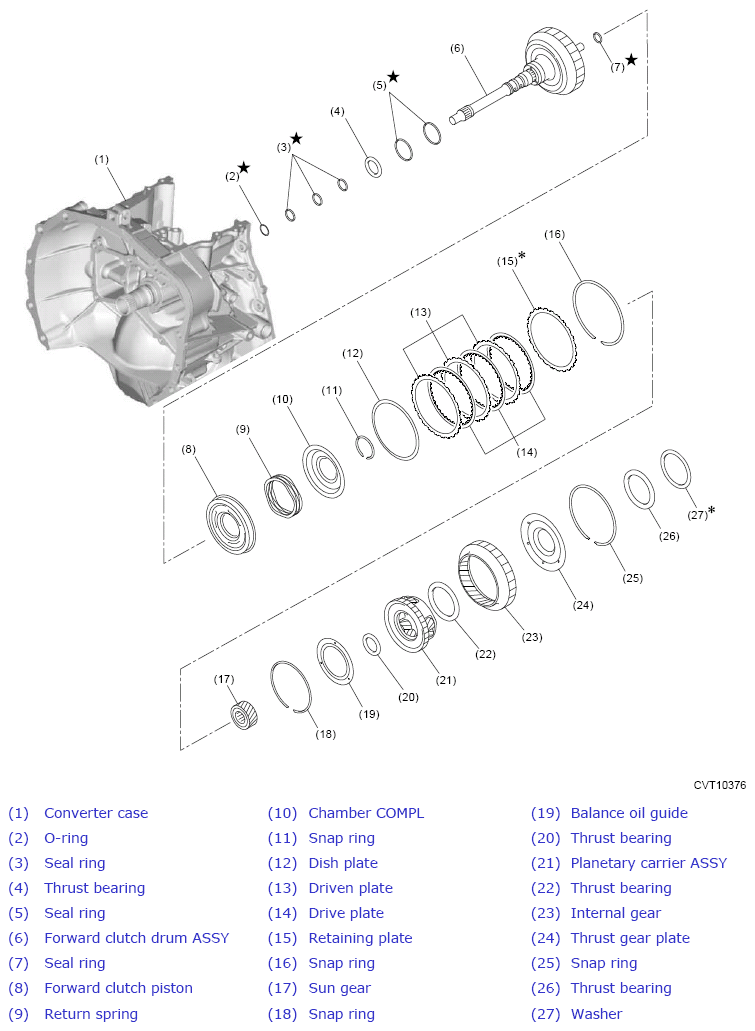

Forward Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
