Cruise Control Command Switch: Inspection

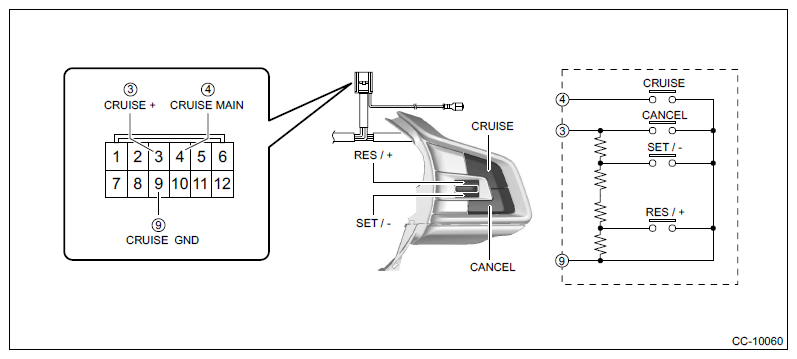

- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Terminal No. Inspection conditions Standard 3-9 CANCEL
SET/-
RES/+All OFF Approx. 4, 020 Ω CANCEL ON Less than 1 Ω SET/- ON Approx. 250 Ω RES/+ ON Approx. 1, 470 Ω 4-9 CRUISE
(MAIN)OFF 3 MO or more ON Less than 1 Ω - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.
Terminal No. Inspection conditions Specification 10 (+)-11 (-) Apply battery voltage. Light ON - Replace the cruise control command switch assembly if it is found defective.
