Power Window Master Switch

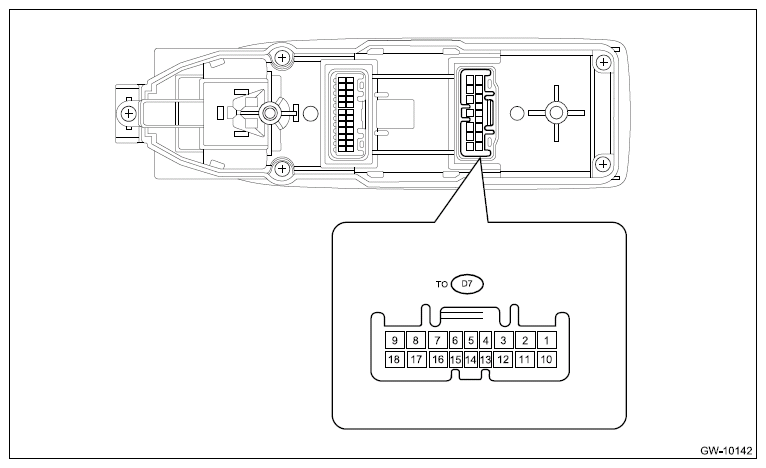

G12400501Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Content Measuring condition Standard
(D7) No. 1 ↔ Chassis ground Power window switch UP (rear seat RH) - -
(D7) No. 2 ↔ Chassis ground Power window switch DOWN (rear seat RH) - -
(D7) No. 3 - - -
(D7) No. 4 - - -
(D7) No. 5 - - -
(D7) No. 6 - - -
(D7) No. 7 ↔ Chassis ground GND Always Less than 1 Ω
(D7) No. 8 Power window switch DOWN (rear seat LH) - -
(D7) No. 9 Power window switch UP (rear seat LH) - -
(D7) No. 10 ↔ Chassis ground Battery power supply Always Battery voltage
(D7) No. 11 Power window switch DOWN (driver's seat) - -
(D7) No. 12 Power window switch UP (driver's seat) - -
(D7) No. 13 - - -
(D7) No. 14 LIN communication - -
(D7) No. 15 - - -
(D7) No. 16 - - -
(D7) No. 17 - - -
(D7) No. 18 ↔ Chassis ground Ignition power supply Always Battery voltage
