Multi Function Display

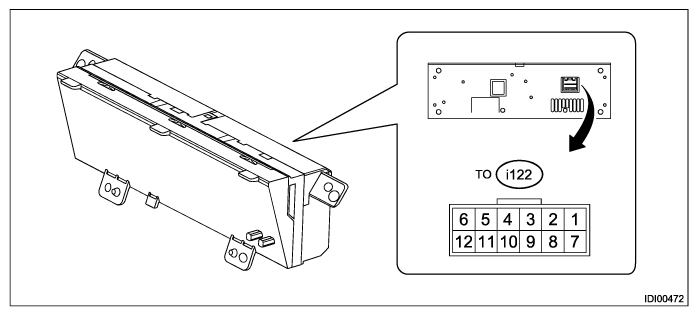

Standard type

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Item	Measuring condition	Standard
1 (+B) ←→ Chassis ground	Voltage	Always	10 - 14 V
2 (GND) ←→ Chassis ground	Resistance	Always	Less than 1 Ω
3 (IG) ←→ Chassis ground	Voltage	IG OFF → ON	0 V → 10 - 14 V
9 (U-ART com.)	-	Cannot be measured	-
10 ←→ Chassis ground	Voltage	Passenger's airbag ON indicator light OFF → ON	0 V → 1.5 V
11 ←→ Chassis ground	Voltage	Passenger's airbag OFF indicator light OFF → ON	0 V → 1.5 V

High grade type
Refer to the "Control Module I/O Signal" of the "MULTI-FUNCTION DISPLAY (DIAGNOSTICS)" service information. Ref. to MULTI-FUNCTION DISPLAY (DIAGNOSTICS)>Control Module I/O Signal>ELECTRICAL SPECIFICATION .
