Drive Cycle W
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0134 | A/F/O2 SENSOR CIRCUIT NO ACTIVITY DETECTED BANK 1 SENSOR 1 | - | 1 |
| P1492 | COIL 1 EGR "A" CONTROL CIRCUIT LOW | - | 1 |
| P1493 | COIL 1 EGR "A" CONTROL CIRCUIT HIGH | - | 1 |
| P1494 | COIL 2 EGR "A" CONTROL CIRCUIT LOW | - | 1 |
| P1495 | COIL 2 EGR "A" CONTROL CIRCUIT HIGH | - | 1 |
| P1496 | COIL 3 EGR "A" CONTROL CIRCUIT LOW | - | 1 |
| P1497 | COIL 3 EGR "A" CONTROL CIRCUIT HIGH | - | 1 |
| P1498 | COIL 4 EGR "A" CONTROL CIRCUIT LOW | - | 1 |
| P1499 | COIL 4 EGR "A" CONTROL CIRCUIT HIGH | - | 1 |
WARNING:
When performing drive cycle W on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
Diagnostic procedure:

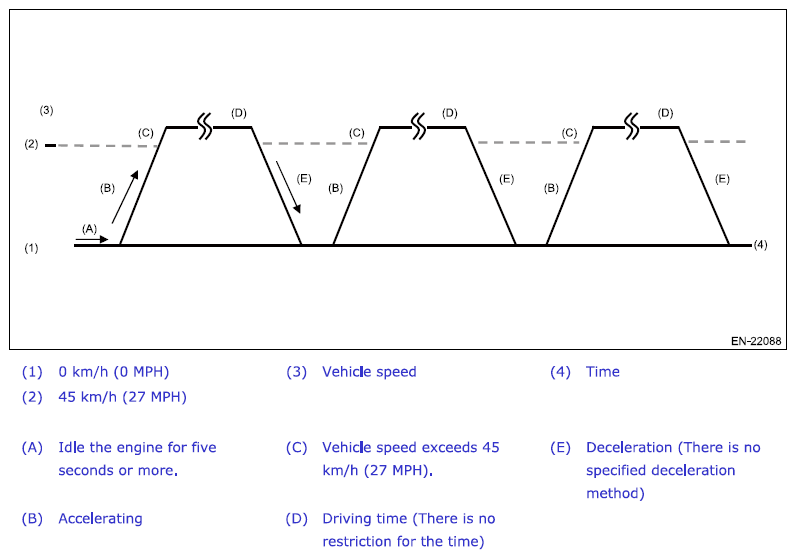

- Drive according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Read Diagnostic Trouble Code (DTC)>OPERATION .
