Drive Cycle Y
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P013F | O2 SENSOR DELAYED RESPONSE - LEAN TO RICH BANK 1 SENSOR 2 | - | 2 |
WARNING:
When performing drive cycle Y on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
Diagnostic procedure:

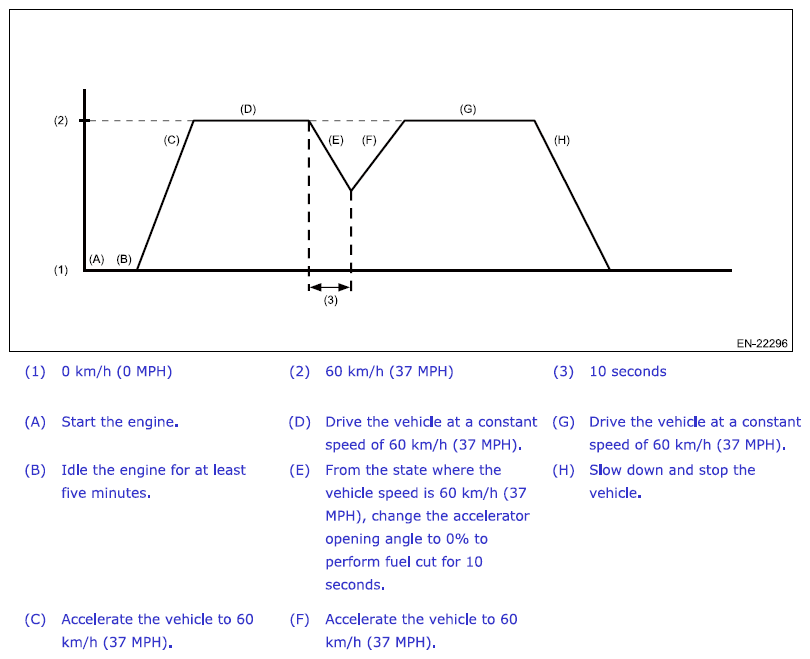

- Drive according to the drive pattern described below.NOTE:
- the condition of acceleration or constant driving can be changed according to different traffic conditions.
- If diagnostic values have not been input after driving, repeat the cycle from step (C) without stopping the engine.
- Cruise control should not be used.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Read Diagnostic Trouble Code (DTC)>OPERATION .
