Power Steering Control Module: Removal

  1. Disconnect the ground cable from battery. Ref. to NOTE>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the power steering control module.
    1. Disconnect the connector of the power steering control module.

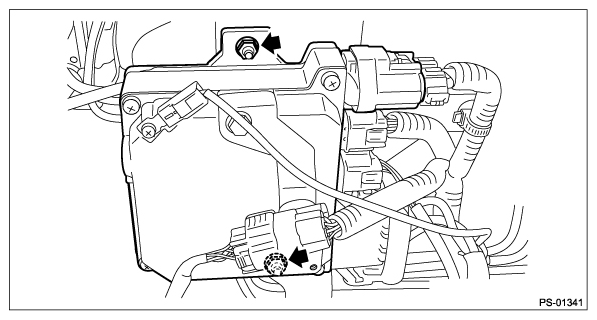

    2. Remove the nuts, and remove the power steering control module.
      G12508154Courtesy of SUBARU OF AMERICA, INC.
