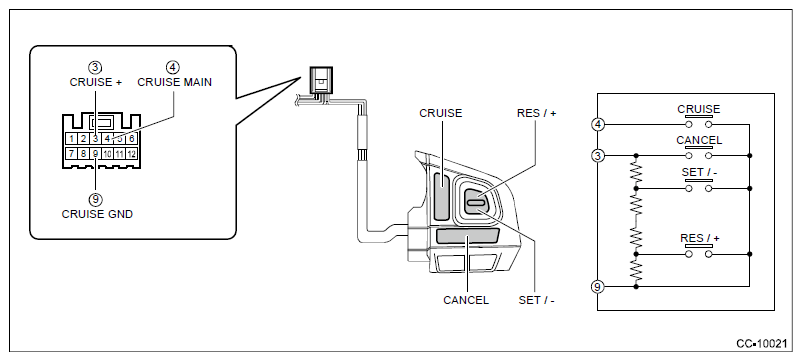

Cruise Control Command Switch: Inspection
- Measure the resistance between connector terminals.
Preparation tool:
Circuit tester
Terminal No. Inspection conditions Standard 3 - 9 CANCEL
SET/-
SET/+All OFF Approx. 4, 020O CANCEL ON Less than 1 Ω SET/- ON Approx. 250 Ω SET/+ ON Approx. 1, 470 Ω 4 - 9 CRUISE
(MAIN)OFF 1 MΩ or more ON Less than 1 Ω - Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.
Terminal No. Inspection conditions Specification 10 (+) - 11 (-) Apply battery voltage. Light ON - Replace the cruise control command switch assembly if it is found defective.
