VDC Control Module and Hydraulic Control Unit (VDCCM & H/U): Inspection: Notes

Check the identification (a) of the VDC control module & hydraulic control unit (VDCCM & H/U).

NOTE: For the identification, refer to "SPECIFICATION" in "General Description". Ref. to VEHICLE DYNAMICS CONTROL (VDC)>General Description>SPECIFICATION .

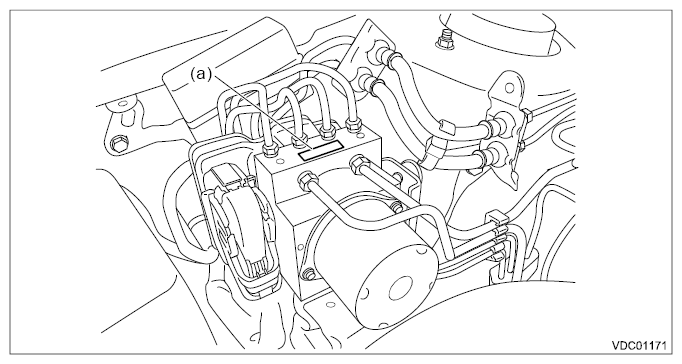

Models without EyeSight

Courtesy of SUBARU OF AMERICA, INC.

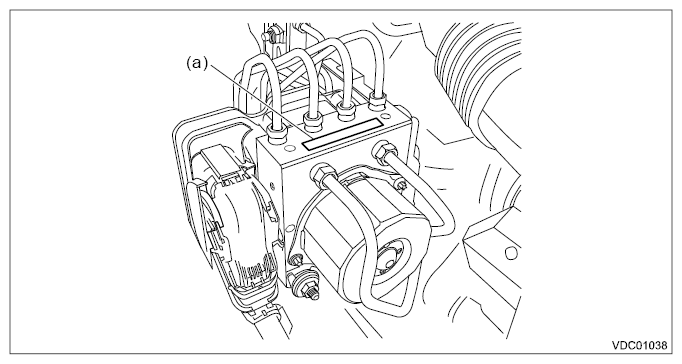

Models with EyeSight

Courtesy of SUBARU OF AMERICA, INC.

Check the condition of connection and settlement of connector, and correct or replace if defective.
