Drive Cycle Aa
| DTC | Item | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P1449 | EVAP SYSTEM CLOG DETECTED (AIR FILTER) | - | 2 |
WARNING:
When performing drive cycle AA on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
Diagnostic procedure:

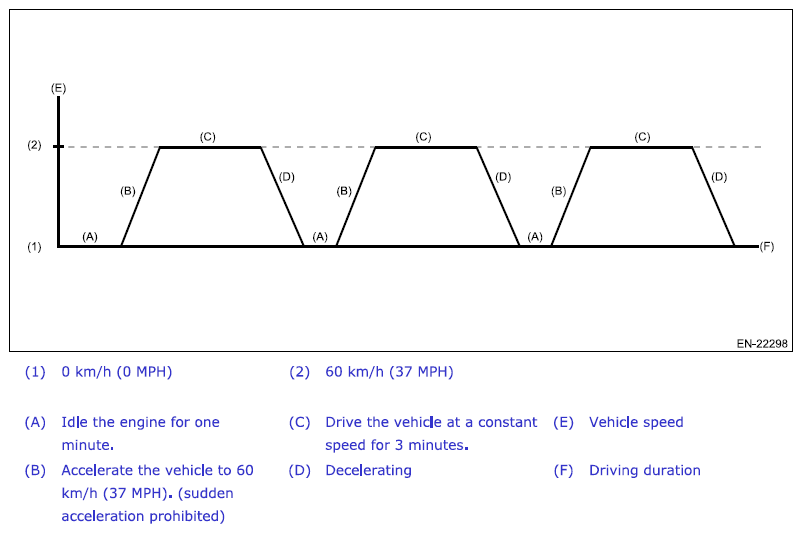

- Drive 3 times according to the drive pattern described below.
- Read the temporary code using the Subaru Select Monitor or general scan tool. Ref. to ENGINE (DIAGNOSTICS) (H4DO)>Read Diagnostic Trouble Code (DTC)>OPERATION .
