Front Stabilizer: Installation

Before installation, inspect the following items and replace any faulty part with a new one.
- Check the bushing - stabilizer for abnormal cracks, fatigue or damage.
- Check the stabilizer link for damage.
Install each part in the reverse order of removal.

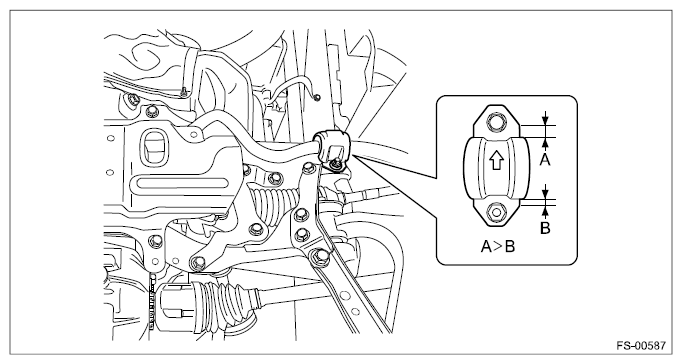

CAUTION: Install the clamp - stabilizer bushing with the arrow mark facing the front of the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

Clamp - stabilizer bushing: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

Stabilizer link: 60 N.m (6.12 kgf-m, 44.3 ft-lb)

Support plate - front crossmember: 60 N.m (6.12 kgf-m, 44.3 ft-lb)

Under cover front - transmission: 18 N.m (1.84 kgf-m, 13.3 ft-lb)

Under cover COMPL - front: Ref. to EXTERIOR/INTERIOR TRIM>General Description>COMPONENT>FRONT UNDER COVER .
Install the front wheels.
Tightening torque:

120 N.m (12.24 kgf-m, 88. ft-lb)
