Front Suspension System & Wheel Alignment: General Description: Specification
FRONT SUSPENSION SYSTEM & WHEEL ALIGNMENT SPECIFICATIONS CHART
| Tire size | P225/60R17 | P225/55R18 | ||
|---|---|---|---|---|
| Front | Wheel arch height | 444 (17.48) | ||
| (Tolerance: +12 mm-24 mm (+0.47in-0.94in )) | mm (in) | |||
| Camber (tolerance: ±0°30' Differences between RH and LH: 35' or less) | 0°00' | |||
| Caster (referential value) | 5°40' | |||
| Steering angle (tolerance: ±1.5°) | Inner wheel | 38.4° | ||
| Outer wheel | 33.8° | |||
| Toe-in | mm (in) | 0±3 (0±0.12) Toe angle (sum of both wheels): 0°±0°15' | ||
| Kingpin angle (referential value) | 14°12' | |||
| Rear | Wheel arch height | 458 (18.03) | ||
| (Tolerance: +12 mm-24 mm (+0.47in-0.94in )) | mm (in) | |||
| Camber (tolerance: ±0°45' Differences between RH and LH: 45' or less) | -1°05' | |||
| Toe-in | mm (in) | 0±3 (0±0.12) Toe angle (sum of both wheels): 0°00'±15' | ||
| Thrust angle (tolerance: 0°00'±30') | 0°00' | |||
NOTE:
- Front toe-in, rear toe-in and front camber can be adjusted. Adjust if the value of toe-in or camber exceeds the tolerance range of the specification chart.
- Other items except for front toe-in, rear toe-in and front camber that are described in the specification chart cannot be adjusted. If other items exceed the tolerance range of the specification chart, check the suspension parts and connections for deformation. If defective, replace them with new parts.
- Adjust with the value less than the inspection value, taking aging variation into consideration.

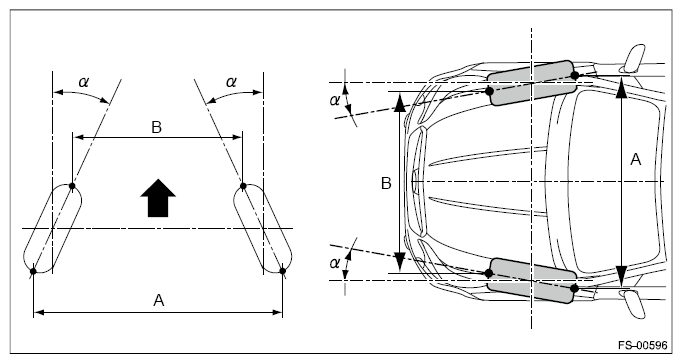

A - B = Positive: Toe-in, Negative: Toe-out
a = Individual toe angles
