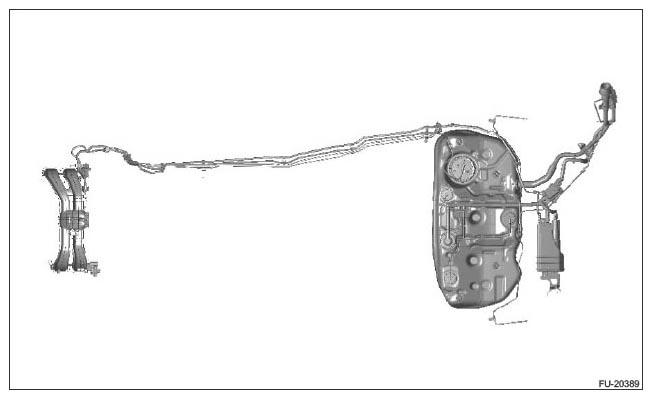

Fuel Delivery And Evaporation Lines: Removal: Notes

1. Release the fuel pressure. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel>PROCEDURE>RELEASING OF FUEL PRESSURE .
2. Drain fuel. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel>PROCEDURE>DRAINING FUEL (WITH SUBARU SELECT MONITOR) .
3. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
4. Open the fuel filler lid and remove the fuel filler cap.
   NOTE: This operation is required to release the inner pressure of the fuel tank.
5. Remove the fuel delivery tube clamp from the fuel delivery tube.
   Fig 2: Locating Fuel Delivery Tube Clamp

   Courtesy of SUBARU OF AMERICA, INC.
6. Disconnect the quick connector on the fuel delivery tube from the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE A) .
   Fig 3: Locating Fuel Delivery Tube Quick Connector

   Courtesy of SUBARU OF AMERICA, INC.
7. Disconnect the evaporation hose from the fuel pipe assembly.
   Fig 4: Locating Fuel Pipe Assembly Evaporation Hose

   Courtesy of SUBARU OF AMERICA, INC.
8. Remove the connector from the fuel pipe bracket A.
   Fig 5: Locating Fuel Pipe Bracket Connector

   Courtesy of SUBARU OF AMERICA, INC.
9. Lift up the vehicle.
10. Remove the bolts securing the fuel bracket A, and remove the pipe clamp from the fuel pipe assembly.
    Fig 6: Locating Fuel Bracket Bolts

    Courtesy of SUBARU OF AMERICA, INC.
11. Remove the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Tank>REMOVAL .
12. Remove individual tubes and hoses from the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>General Description>COMPONENT>FUEL TANK .
    • For information about disconnecting fuel delivery tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE D) .
    • For information about disconnecting the circulate tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE G) .
    • For information about disconnecting the vent tube, refer to "Fuel Delivery and Evaporation Lines". Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE F) . Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>INSTALLATION>QUICK CONNECTOR CONNECTION (TYPE H) .
13. Disconnect the purge tube from the fuel pipe assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>Fuel Delivery and Evaporation Lines>REMOVAL>QUICK CONNECTOR DISCONNECTION (TYPE G) .
    Fig 7: Locating Fuel Pipe Assembly Purge Tube

    Courtesy of SUBARU OF AMERICA, INC.
14. Remove the floor under protector RH. Ref. to EXTERIOR/INTERIOR TRIM>Floor Under Protector>REMOVAL .
15. Disconnect the brake pipe. Ref. to BRAKE>Brake Hose>REMOVAL>FRONT BRAKE HOSE . Ref. to BRAKE>Brake Pipe>REMOVAL>CENTER AND REAR BRAKE PIPE .
16. Remove the bolts securing the fuel pipe bracket B and the fuel pipe bracket C, and remove the pipe clamp from the fuel pipe assembly.
    Fig 8: Locating Fuel Pipe Bracket Bolts

    Courtesy of SUBARU OF AMERICA, INC.
17. Remove the fuel pipe assembly from the pipe clamp.
