Model With Push Button Ignition Switch

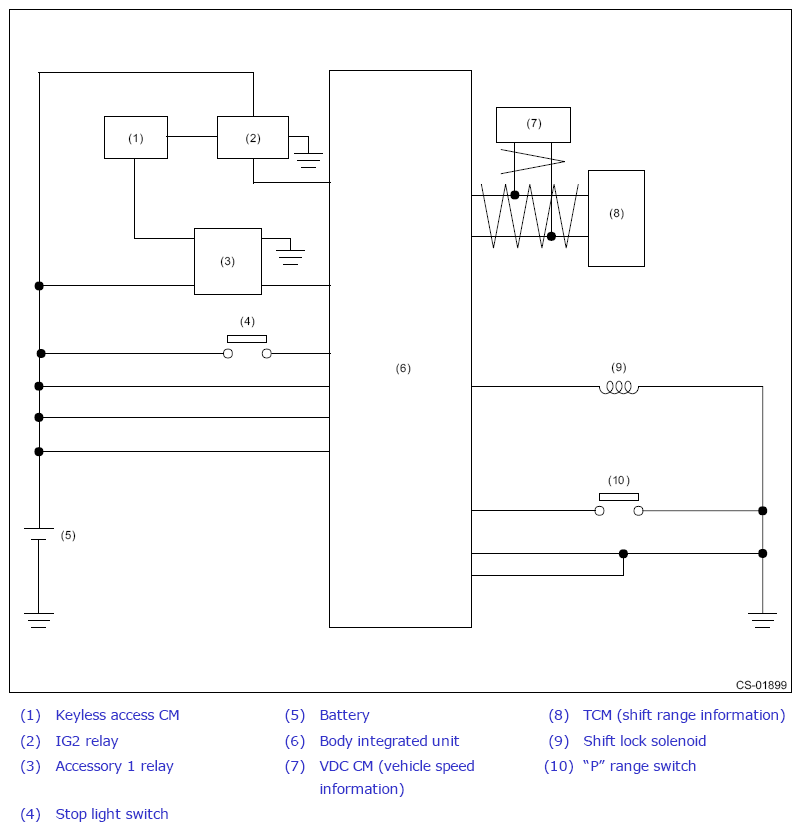

Fig 1: AT Shift Lock Control System Wiring Diagram - Model With Push Button Ignition Switch
G11255287Courtesy of SUBARU OF AMERICA, INC.
