Select Cable: Adjustment

Shift the select lever to "N" range.
Lift up the vehicle.
Remove the center exhaust cover.

Fig 1: Locating Center Exhaust Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Loosen the adjusting nuts on both sides.

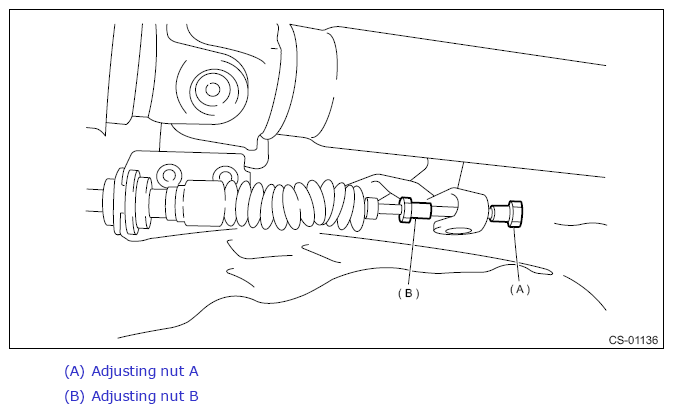

Fig 2: Adjusting Nut A And B
Courtesy of SUBARU OF AMERICA, INC.
Turn adjusting nut B until it lightly touches the connector.

Fig 3: Locating Select Lever, Connector, Adjusting Nut A And B
Courtesy of SUBARU OF AMERICA, INC.
Set a spanner wrench to adjusting nut B so that it does not rotate, and then tighten the adjusting nut A.
Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

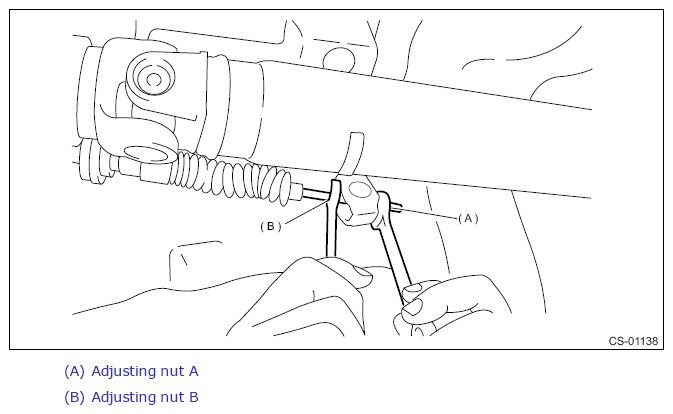

Fig 4: Tightening Adjusting Nut A
Courtesy of SUBARU OF AMERICA, INC.
After the completion of adjustment, confirm that the select lever operates normally at all ranges.
Install in the reverse order of removal.
