Select Cable: Removal

Shift the select lever to "N" range.
Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Lift up the vehicle.
Remove the center exhaust cover.

Fig 1: Locating Center Exhaust Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap pin and washer from the shifter arm.
CAUTION: Do not apply excessive load while holding the part (A).

Fig 2: Measuring Arm Length
Courtesy of SUBARU OF AMERICA, INC.

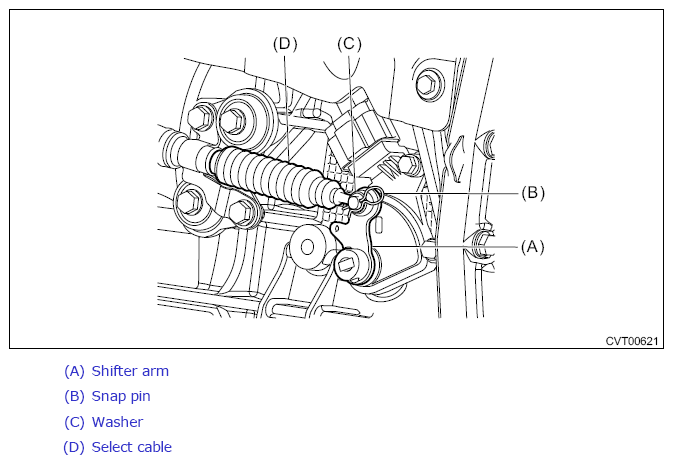

Fig 3: Locating Shifter Arm, Snap Pin, Washer And Select Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove the plate assembly from the transmission case.

Fig 4: Locating Plate Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from arm COMPL.
CAUTION: Do not apply excessive load while holding the part (A).

Fig 5: Measuring Arm Length
Courtesy of SUBARU OF AMERICA, INC.

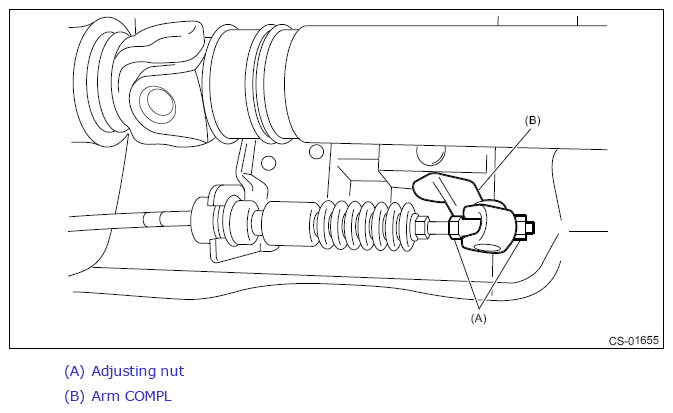

Fig 6: Adjusting Nut And Complete Arm
Courtesy of SUBARU OF AMERICA, INC.
Raise the claw of clamp to remove the cable from bracket.

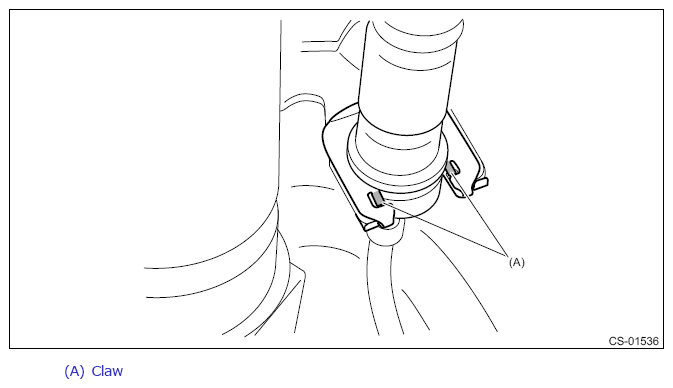

Fig 7: Locating Bracket Clamp Claw
Courtesy of SUBARU OF AMERICA, INC.
Remove the select cable from plate assembly.
