Backup/Power Supply Fuse

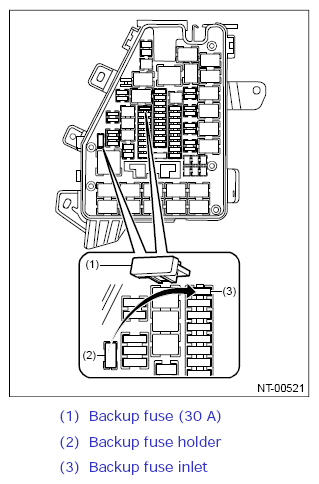

Backup fuse (30 A) remains removed to prevent the battery consumption when vehicles are delivered. Install the backup fuse by following the illustration. Besides, removing the backup fuse from the fuse holder deactivates the control during shipping (delivery mode).

G12403117Courtesy of SUBARU OF AMERICA, INC.
