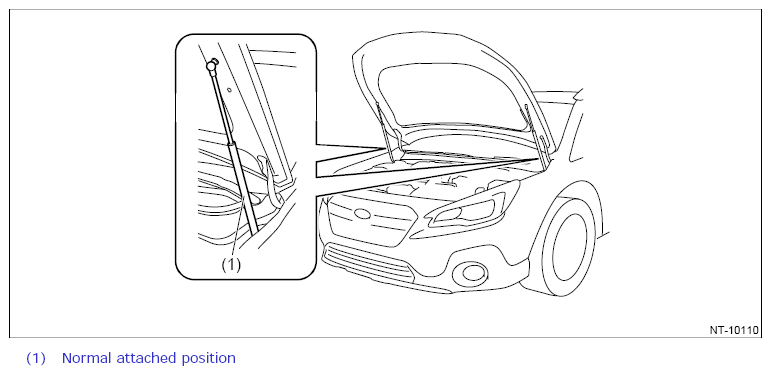

Front Hood Damper Stay

Always perform works such as inspections and maintenance with both damper stays attached.
CAUTION: At the inspection and general maintenance, do not detach the damper stays.

Courtesy of SUBARU OF AMERICA, INC.

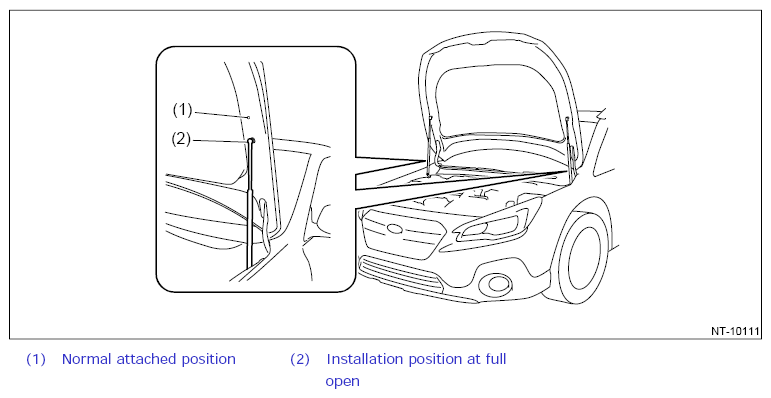

When wider hood opening is necessary, set the damper stay below as shown in the figure.
Tightening torque:

EXTERIOR BODY PANELS>General Description>COMPONENT>FRONT HOOD
CAUTION:
- The hood cannot be closed with the hood damper on the full open side. When it is necessary to close, tie the hood striker and the radiator panel with a string etc. to fix them.
- After work, set the damper stays back to the normal position and tighten the bolts to the specified torque.
Courtesy of SUBARU OF AMERICA, INC.
