Transmission Control Module (TCM): Removal

  1. Disconnect the ground cable from battery. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
    NOTE: For model with battery sensor, disconnect the ground terminal from battery sensor.
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DO)>Air Intake Duct>REMOVAL .
  3. Remove the clip (A), and loosen the clamps (B) and (C).
    G11565902Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the air intake boot from the throttle body, and move it to the left side wheel apron.
    G11565903Courtesy of SUBARU OF AMERICA, INC.

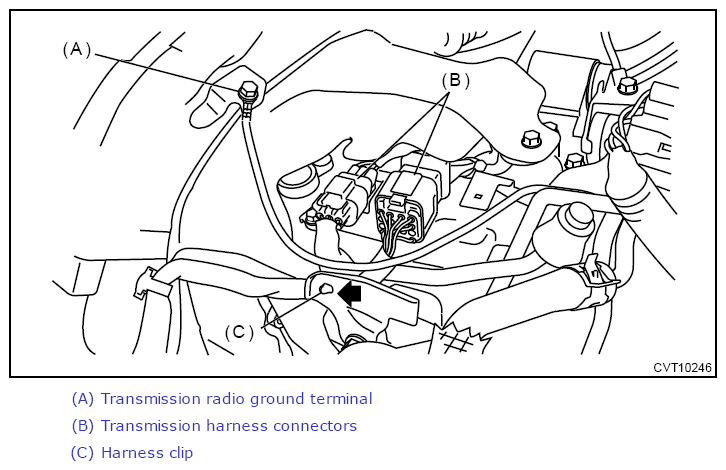

  5. Disconnect the transmission radio ground terminal and transmission harness connector, and remove the harness clip.
    G12407315Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the transmission case cover.
    G11572607Courtesy of SUBARU OF AMERICA, INC.

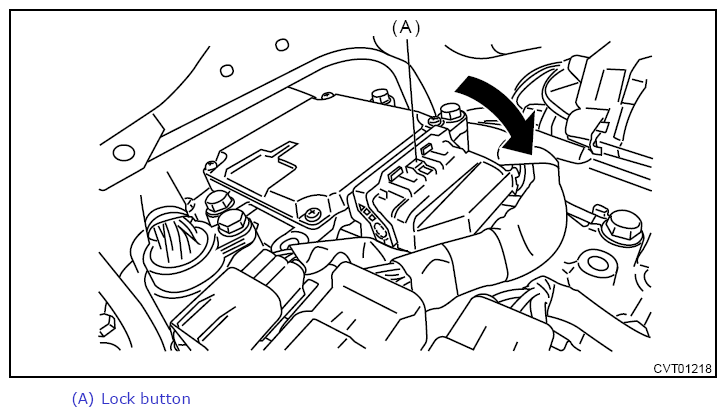

  7. Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.
    G12407317Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the TCM.
    G10275066Courtesy of SUBARU OF AMERICA, INC.
