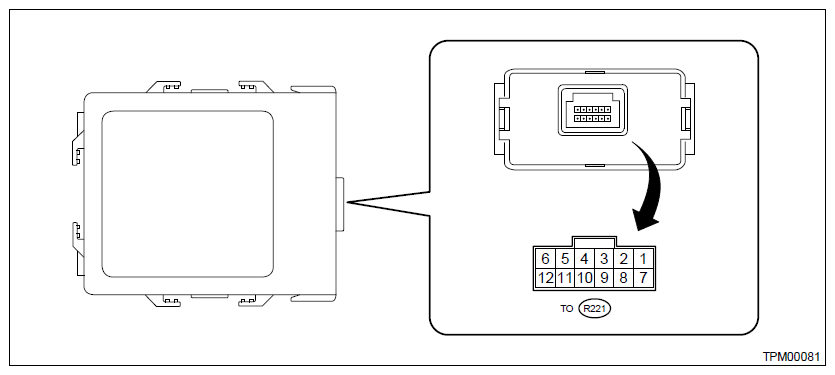

Keyless Entry Control Module

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Item	Measuring condition	Standard
1 (CAN-L)	-	Cannot be measured	-
2 (CAN-H)	-	Cannot be measured	-
6 (IG) ↔ Chassis ground	Voltage	IG OFF → ON	0 V → 10 - 14 V
7 (GND) ↔ Chassis ground	Resistance	Always	Less than 1 Ω
12 (+B) ↔ Chassis ground	Voltage	Always	10 - 14 V
