Battery Sensor

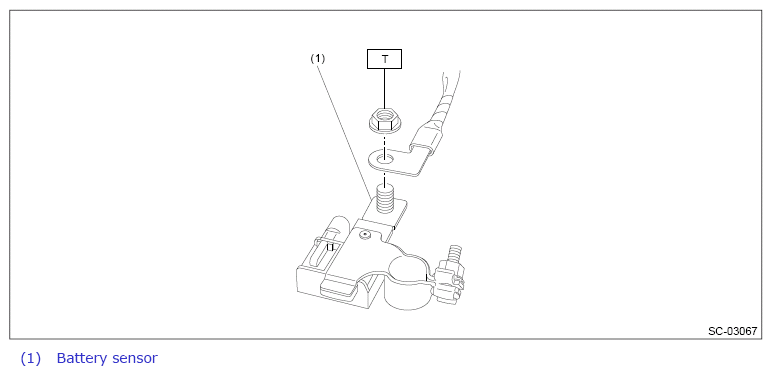

Fig 1: Battery Sensor

G12405821

Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
