Scavenge Pump

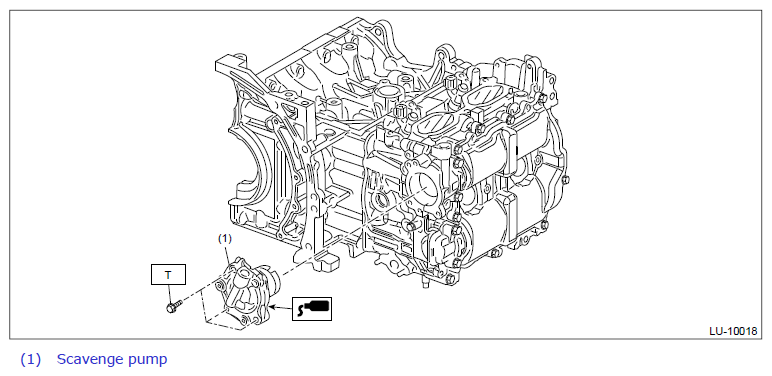

Fig 1: Locating Scavenge Pump
G12442913Courtesy of SUBARU OF AMERICA, INC.

Tightening Torque: N.m (kgf-m, ft-lb)

T: 6.4 (0.7, 4.7)
