Ignition Key Lock: Replacement

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION
Do not allow harness and connectors to interfere or get tangled up with other parts.
If the steering wheel and steering angle sensor (steering roll connector) are removed, perform "VSC (VDC) Centering Mode" of the VDC. Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDC CONTROL MODULE & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>REMOVAL
Remove the steering wheel assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>REMOVAL
Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL
Remove the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>REMOVAL
Remove the duct foot driver. Ref. to AIR CONDITIONER>AIR VENT DUCT>REMOVAL>FOOT DUCT
Remove the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>REMOVAL

Remove the ignition key lock.

Secure the column assembly steering in a vise.

Use the reverse tap and drill to remove the set bolt and remove the ignition key lock.

Courtesy of SUBARU OF AMERICA, INC.

Install the ignition key lock.

Secure the ignition key lock to the column assembly steering.

NOTE:

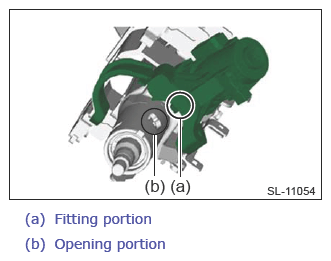

When installing the ignition key lock, confirm that the fitting portion of the ignition key lock is properly engaged with the opening portion of the column shaft.

Courtesy of SUBARU OF AMERICA, INC.

Use new set bolts. Tighten the bolt until the bolt head is broken (bolt head wrenched off).

Install the column assembly steering. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING COLUMN>INSTALLATION
Install the duct foot driver. Ref. to AIR CONDITIONER>AIR VENT DUCT>INSTALLATION>FOOT DUCT
Install the knee airbag module. Ref. to AIRBAG SYSTEM>KNEE AIRBAG MODULE>INSTALLATION
Install the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>INSTALLATION
Align the center position of the steering roll connector. Ref. to AIRBAG SYSTEM>ROLL CONNECTOR>ADJUSTMENT
Install the steering wheel assembly. Ref. to POWER ASSISTED SYSTEM (POWER STEERING)>STEERING WHEEL>INSTALLATION
Install the driver's airbag module. Ref. to AIRBAG SYSTEM>DRIVER'S AIRBAG MODULE>INSTALLATION
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Perform "VDC sensor midpoint setting mode". Ref. to VEHICLE DYNAMICS CONTROL (VDC)>VDC CONTROL MODULE AND HYDRAULIC CONTROL UNIT (VDC CONTROL MODULE & H/U)>ADJUSTMENT>VDC SENSOR MIDPOINT SETTING MODE
