Fuel Sub Level Sensor Upper Plate Nuts Tightening Sequence

WARNING: This page is about a different variant/trim than selected.
  1. Install the fuel sub level sensor to the fuel tank.
    1. Make sure the sealing portion is free from fuel or foreign matter before installation.
    2. Align the cutout (B) as shown in the figure, and install the fuel sub level sensor upper plate cushion to the fuel sub level sensor upper plate.
    3. Align the cutout of the fuel sub level sensor upper plate with the protrusion (B) of the fuel sub level sensor as shown in the figure, and install the fuel sub level sensor upper plate from the upper side of the fuel sub level sensor.
    4. Install the gasket from the lower side of the fuel sub level sensor so that the protrusion (B) of the fuel sub level sensor and the protrusion (A) of the gasket are positioned as shown in the figure.
      NOTE: Use a new gasket.
    5. Install the fuel sub level sensor to the fuel tank in the direction shown in the figure, and tighten the nuts to the specified torque in the order as shown in the figure.
      CAUTION: Set the arm and float of the fuel sub level sensor while paying attention to prevent them from contacting the fuel tank. If the arm of the fuel sub level sensor is bent, the fuel gauge may not read correctly.

      Tightening Torque:

      4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

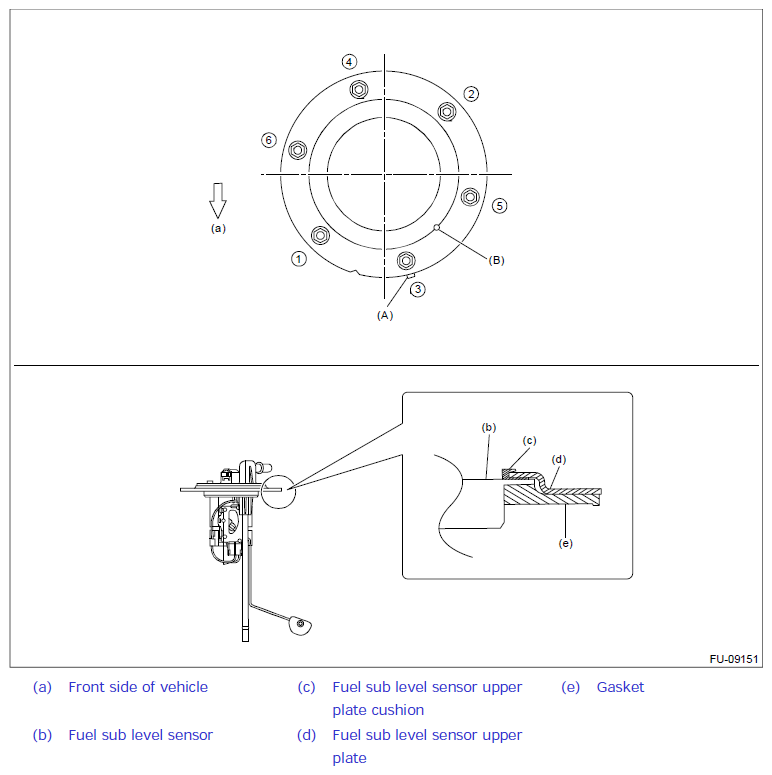

    Fig 1: Fuel Sub Level Sensor Upper Plate Nuts
    G12437433Courtesy of SUBARU OF AMERICA, INC.
  2. Install the bolt which secures the fuel sub level sensor protector to the fuel tank.

    Tightening Torque:

    4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

    G10264946
  3. Connect the quick connectors of fuel delivery tube (A), fuel return tube (B), and jet pump tube (C). Ref. to FUEL INJECTION (FUEL SYSTEMS) (STI)>Fuel Delivery, Return and Evaporation Lines>INSTALLATION .
  4. Attach the rubber cap (D) to the nut.
    G12437430
  5. Connect the connector to the fuel sub level sensor.
    G10264944
  6. Install the service hole cover.
    G10264943
  7. Install the rear seat cushion. Ref. to SEATS>Rear Seat>INSTALLATION .
  8. Connect the battery ground terminal.
