Front Camber

  1. Adjust the camber angle to the following value.
    MODEL TIRE SIZE CAMBER (DIFFERENCE BETWEEN RH AND LH 35' OR LESS)
    WRX model 235/45R17 -0°45' ± 0°30'
    245/40R18
    STI model 245/40R18
    245/35R19
  2. Loosen the two flange nuts while holding the strut bolts.

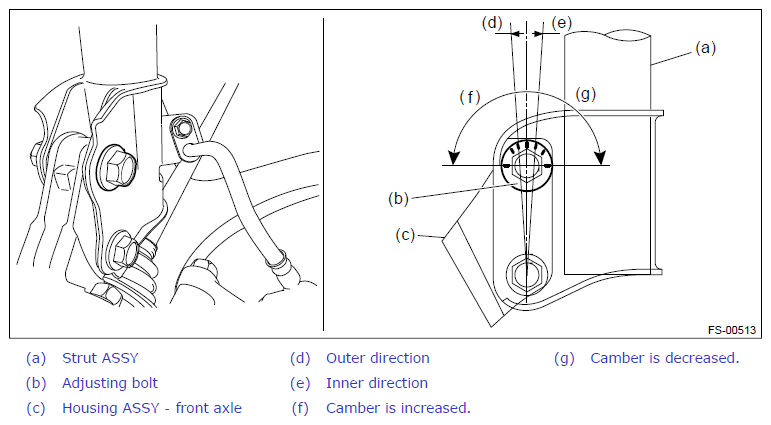

  3. Turn the camber adjusting bolt so that the camber is set at specification.
    NOTE: Moving the adjusting bolt by one scale changes the camber by approximately 0°15'.
    G12443131
    TO INCREASE CAMBER.
    Rotate the left side counterclockwise. Rotate the right side clockwise.
    G12400548
    G12400549
    TO DECREASE CAMBER.
    Rotate the left side clockwise. Rotate the right side counterclockwise.
    G12400549
    G12400548
  4. Tighten two new flange nuts.

    Tightening Torque:

    155 N.m (15.8 kgf-m, 114.3 ft-lb)

    NOTE: While holding the adjusting bolt side, tighten the nut side.
