Body Control

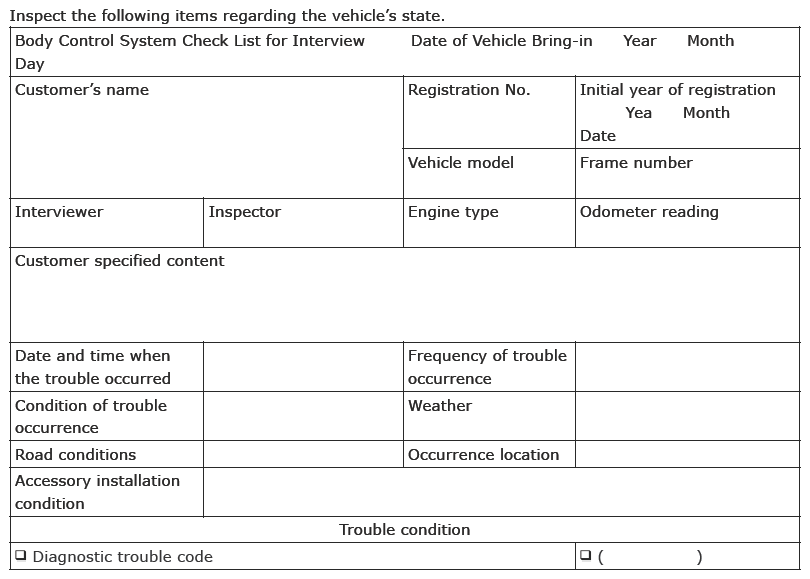

Inspect the following items regarding the vehicle's state.
Courtesy of SUBARU OF AMERICA, INC.
CONDITION OF IGNITION POWER SUPPLY
Courtesy of SUBARU OF AMERICA, INC.

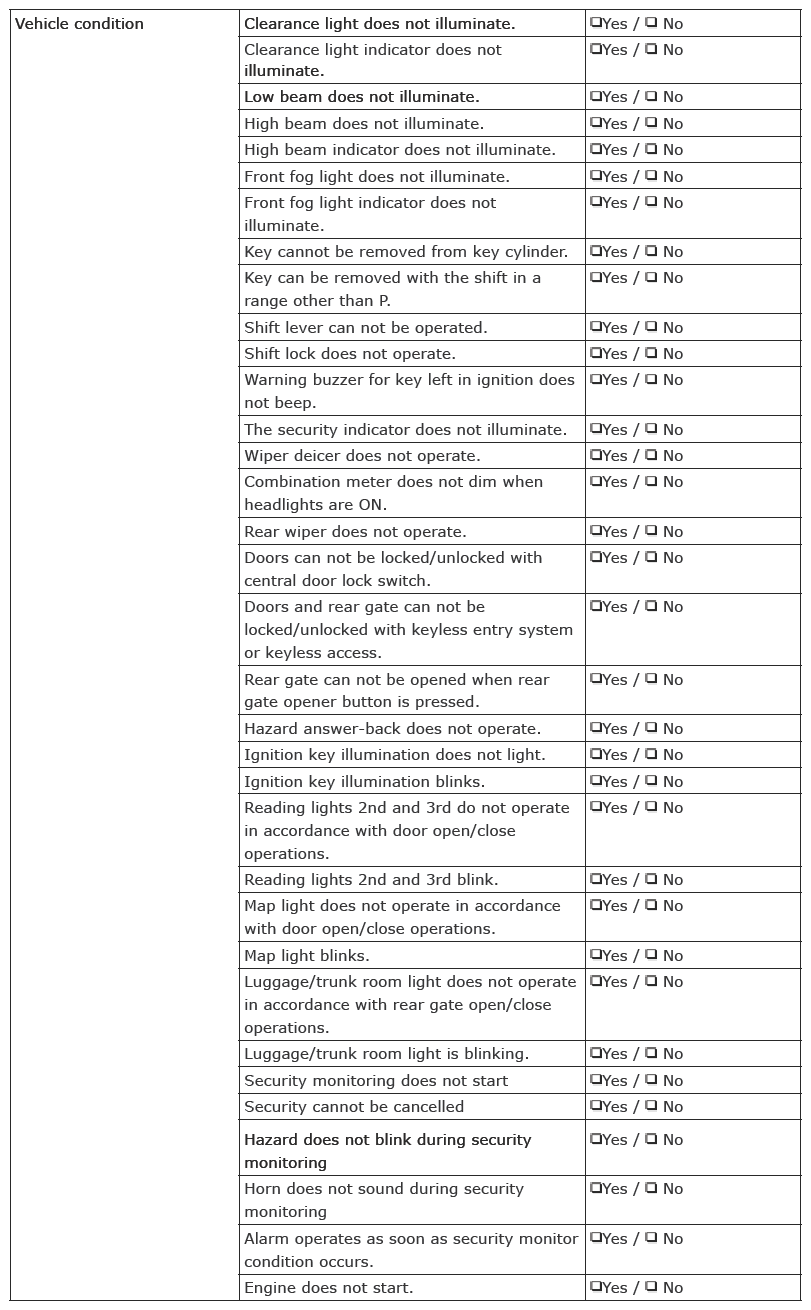

Symptoms
NOTE:
The items vary depending on destinations and equipment.
Courtesy of SUBARU OF AMERICA, INC.

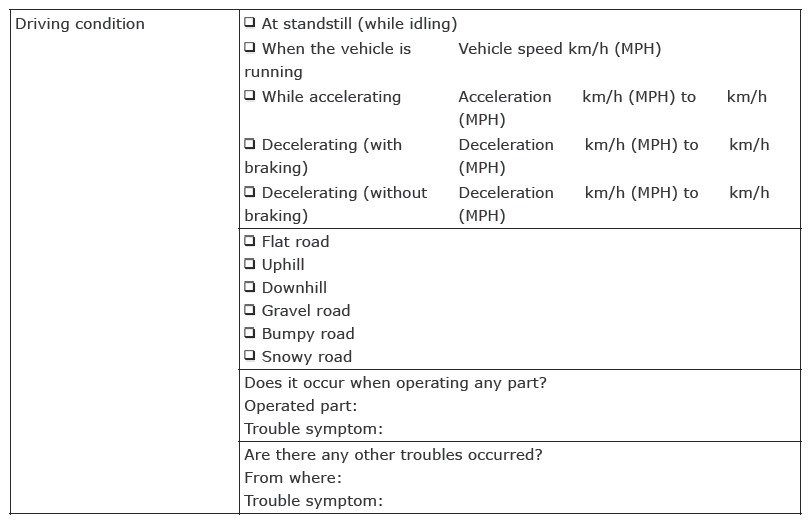

CONDITIONS UNDER WHICH TROUBLE OCCURS
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
