Push Button Ignition Switch: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the cover LWR driver. Ref. to EXTERIOR/INTERIOR TRIM>INSTRUMENT PANEL LOWER COVER>REMOVAL .
  3. Remove the grille ventilation assembly center LH. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  4. Remove the visor assembly. Ref. to INSTRUMENTATION/DRIVER INFO>COMBINATION METER>REMOVAL .

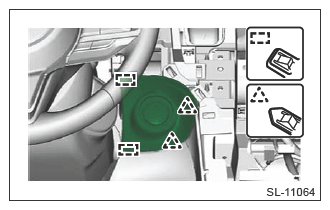

  5. Remove the panel starter switch.
    1. Release the claws.
    2. Detach the connectors and remove the panel starter switch.
    G13201482Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the switch assembly starter.
    G11246400Courtesy of SUBARU OF AMERICA, INC.
