Relay and Fuse: Location

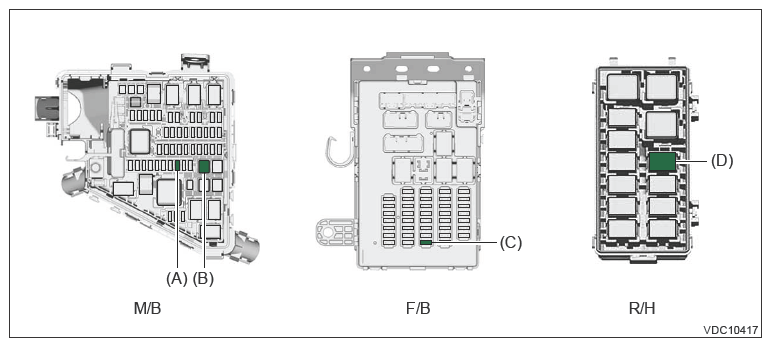

G13199696Courtesy of SUBARU OF AMERICA, INC.
Main fuse box (M/B) Fuse 30 A (VDC CM & H/U) (A)
Fuse 40 A (VDC CM & H/U) (B)
Fuse & relay box (F/B) Fuse 7.5 A (VDC CM & H/U) (C)
Relay holder (R/H) Brake light relay (D)
NOTE: For other related fuses, refer to the wiring diagram. Ref. to WIRING SYSTEM>POWER SUPPLY CIRCUIT .
