DTC P2401: EVAP System Leak Detection Pump Control Circuit Low: Notes

DTC detecting condition:

Immediately at fault recognition

CAUTION: Use the check board when measuring the ECM terminal voltage and resistance. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>GENERAL DESCRIPTION>PREPARATION TOOL>HOW TO USE CHECK BOARD .

NOTE: After the faulty parts are repaired or replaced, perform the final check in Basic Diagnostic Procedure. Ref. to ENGINE (DIAGNOSTICS) (H4DOTC)>BASIC DIAGNOSTIC PROCEDURE>PROCEDURE .

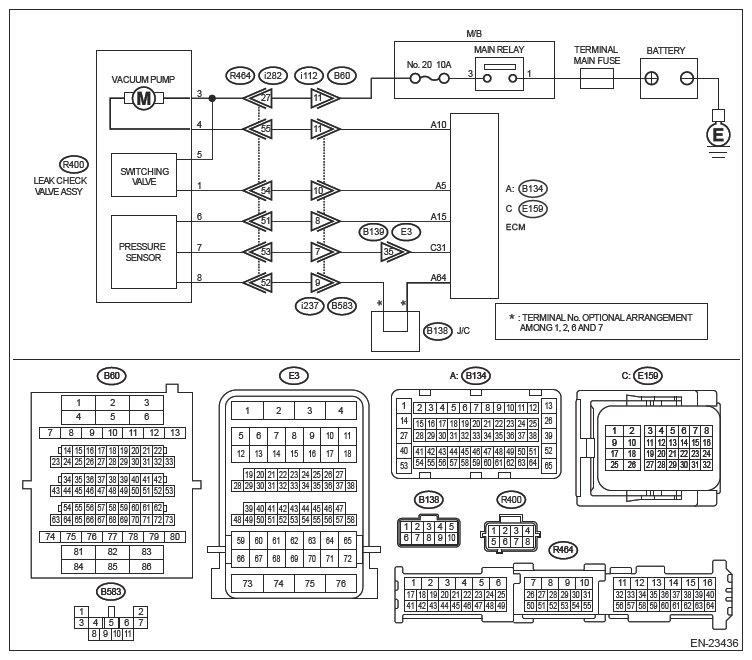

Wiring diagram:

Engine Electrical System Ref. to WIRING SYSTEM>ENGINE ELECTRICAL SYSTEM .

Courtesy of SUBARU OF AMERICA, INC.

CHECK HARNESS BETWEEN ECM AND LEAK CHECK VALVE ASSEMBLY CONNECTOR.
1. Turn the ignition switch to ON.
2. Measure the voltage between ECM connector and engine ground.
  Connector and terminal.

  (B134) No. 10 (+) - Engine ground (-):
Is the voltage 10 V or more?

Yes : Go to 2.

No : Go to 3.
CHECK FOR POOR CONTACT.
Check for poor contact of ECM connector.

Is there poor contact of ECM connector?

Yes : Repair the poor contact of ECM connector.

No : Even if DTC is detected, the circuit has returned to a normal condition at this time. Reproduce the failure, and then perform the diagnosis again.

NOTE: In this case, temporary open or short circuit of harness or temporary poor contact of connector may be the cause.
CHECK POWER SUPPLY OF LEAK CHECK VALVE ASSEMBLY.
Measure the voltage between the leak check valve assembly connector and chassis ground.

Connector and terminal.

(R400) No. 3 (+) - Chassis ground (-):

Is the voltage 10 V or more?

Yes : Go to 4.

No : Repair the following item.
- Open circuit in harness between M/B and the leak check valve assembly connector
- Poor contact of coupling connector
CHECK HARNESS BETWEEN ECM AND LEAK CHECK VALVE ASSEMBLY CONNECTOR (SHORT TO GROUND).
1. Turn the ignition switch to OFF.
2. Disconnect the connector from ECM.
3. Disconnect the connector from the leak check valve assembly.
4. Measure the resistance between leak check valve assembly and chassis ground.
  Connector and terminal.

  (R400) No. 4 - Chassis ground:
Is the resistance 1 MΩ or more?

Yes : Go to 5.

No : Repair the short circuit to ground in harness between ECM connector and leak check valve assembly connector.
CHECK HARNESS BETWEEN ECM AND LEAK CHECK VALVE ASSEMBLY CONNECTOR (OPEN).
Measure the resistance of harness between ECM connector and the leak check valve assembly connector.

Connector and terminal.

(B134) No. 10 - (R400) No. 4:

Is the resistance less than 1 Ω?

Yes : Go to 6.

No : Repair the following item.
- Open circuit in harness between ECM connector and the leak check valve assembly connector
- Poor contact of coupling connector
CHECK LEAK CHECK VALVE ASSEMBLY.
Check the vacuum pump of the leak check valve assembly. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>LEAK CHECK VALVE ASSEMBLY>INSPECTION>CHECK VACUUM PUMP .

Is the check result OK?

Yes : Repair the poor contact in the leak check valve assembly connector.

No : Replace the leak check valve assembly. Ref. to EMISSION CONTROL (AUX. EMISSION CONTROL DEVICES) (H4DOTC)>LEAK CHECK VALVE ASSEMBLY .
