Exploded View

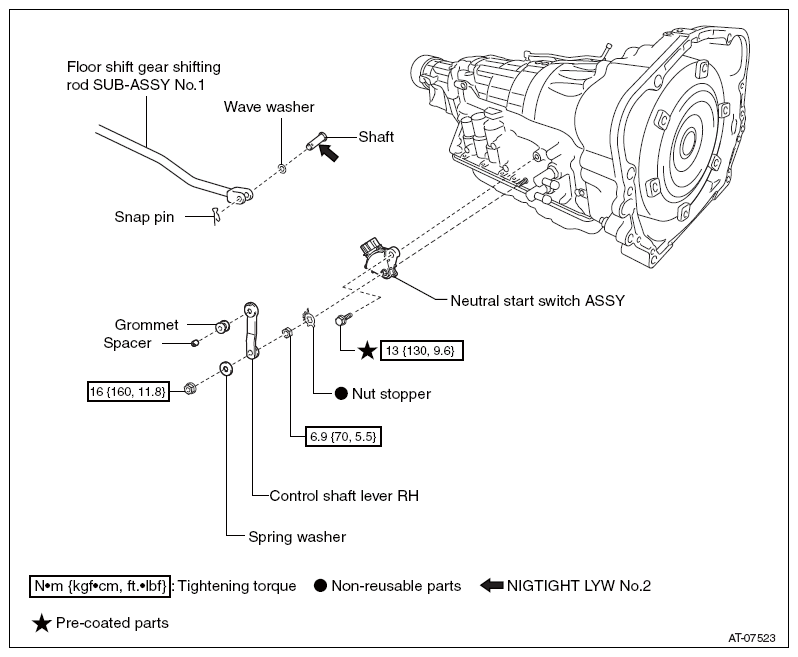

Fig 1: Neutral Start Switch Assembly Components With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
