Exploded View

Fig 1: Select Lever Components With Torque Specification (1 Of 2)
G08554359Courtesy of SUBARU OF AMERICA, INC.

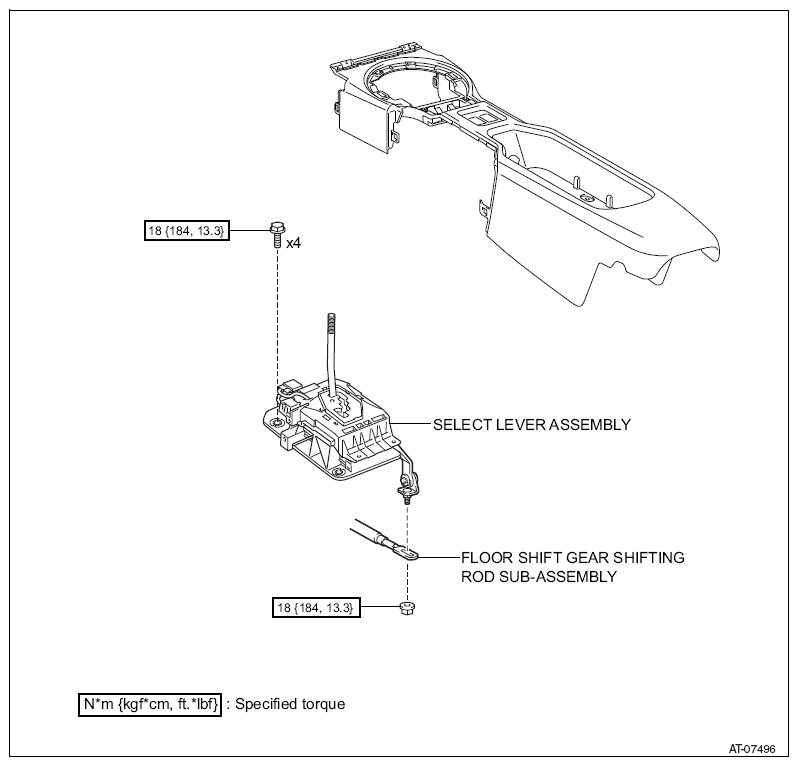

Fig 2: Select Lever Components With Torque Specification (2 Of 2)
G08554431Courtesy of SUBARU OF AMERICA, INC.
G08554432Courtesy of SUBARU OF AMERICA, INC.
