Select Lever: Installation

1. Temporarily install the select lever ASSY with 4 bolts.
   CAUTION: Keep the wiring harness from being caught in.
2. Tighten 4 bolts to the specified torque in the order shown in the figure.

   Standard value: T=18N.m {184kgf.cm} {13.3ft.lbf}

3. Install the wiring harness clamp to the select lever ASSY.
4. Connect the connector.
5. Set the select lever to N position.

   Courtesy of SUBARU OF AMERICA, INC.

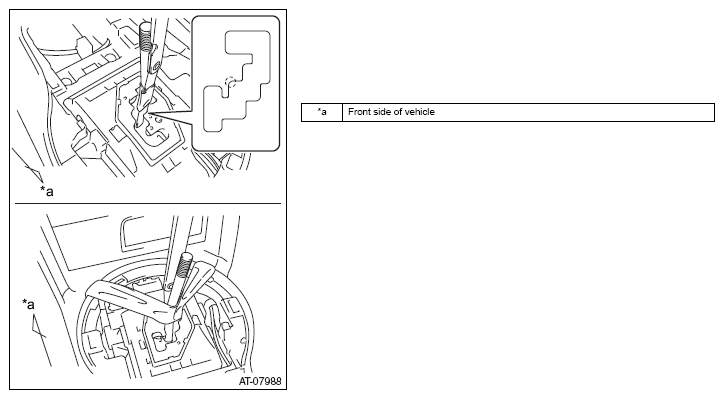

6. Insert a 0.3 mm thickness gauge between the select lever and the guide plate, and secure it with tape, etc.
   CAUTION: Keep the thickness gauge from entering the portion (arc) shown in the figure.

   Courtesy of SUBARU OF AMERICA, INC.

   Courtesy of SUBARU OF AMERICA, INC.

1. Pull the floor shift gear shifting rod SUB-ASSY No. 1 toward the rear of the vehicle until it stops, then put it back 2 steps (to N position).
2. Temporarily install the floor shift gear shifting rod SUB-ASSY No. 1 with a nut while seating it on the flat surface of the swivel.
   CAUTION: Be sure to seat it by hand and temporarily tighten the nut.

   Courtesy of SUBARU OF AMERICA, INC.

3. Tighten the nut with the arm COMPL lightly pressed toward the rear of the vehicle.

   Standard value: T=18N.m {184kgf.cm} {13ft.lbf}

   CAUTION:

   • Do not press the arm COMPL excessively.
   • Check that the floor shift gear shifting rod SUB-ASSY No. 1 remains seated on the flat surface of the swivel.

(Refer to INSTALLATION )
