ECM Terminal Arrangement

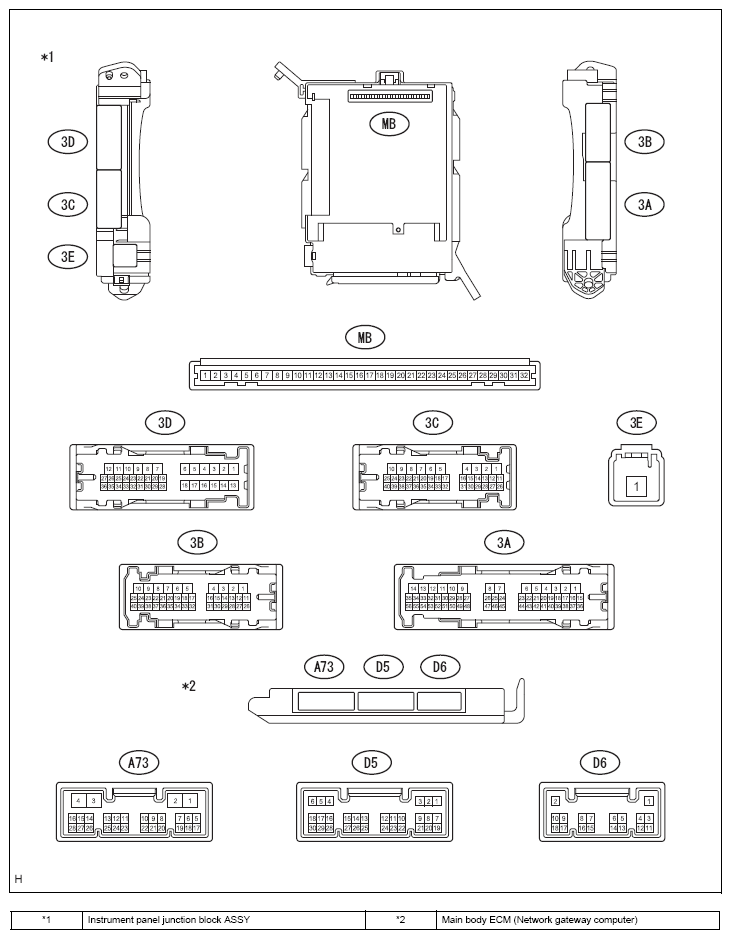

- Instrument panel junction block ASSY, main body ECM (Network gateway computer)
- Inspection of the instrument panel junction block ASSY and the main body ECM (network gateway computer)
- Measure the voltage between the terminals.
Standard value
STANDARD VALUE SPECIFICATIONTerminal No. (Terminal symbol) Inspection conditions Standard value A73-24 ←→chassis ground IG ON 11 to 14 V D5-22 (ACC) ←→chassis ground(1) ACC ON 11 to 14 V NOTE:(1) When there is a smart entry & start system NOTE: If it is outside the standard values, the vehicle is defective.
- Measure the voltage between the terminals.
- Inspection of the instrument panel junction block ASSY and the main body ECM (network gateway computer)
- Heater control SUB-ASSY (Rear window defogger switch) (except for automatic air conditioning system)
- Disconnect the connector D22 of the heater control SUB-ASSY (Rear window defogger switch).
- Measure the voltage and resistance between terminals.
Standard value
STANDARD VALUE SPECIFICATIONTerminal No. (Terminal symbol) Inspection conditions Standard value D22-2 (IND+) ←→D22-4 (RDEF-) Always 11 to 14 V D22-4 (RDEF-) ←→chassis ground Always Less than 1 Ω - Connect the connector D22 of the heater control SUB-ASSY (Rear window defogger switch).
- Measure the voltage between the terminals.
Standard value
STANDARD VALUE SPECIFICATIONTerminal No. (Terminal symbol) Inspection conditions Standard value D22-6 (IND+) ←→D22-4 (RDEF-) IG ON
Defogger switch OFF →ON11 to 14 V →1 V or less
