Description of functions

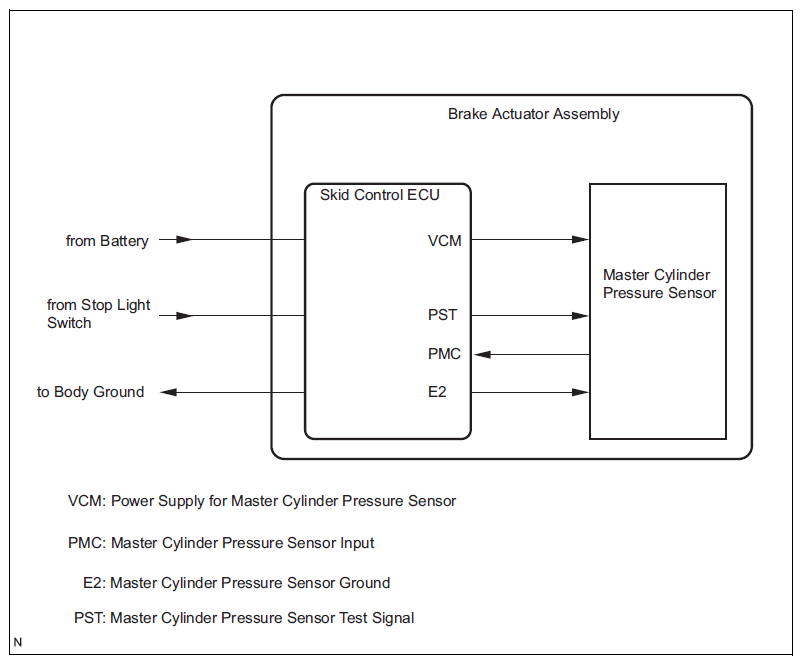

The master cylinder pressure sensor is integrated into the brake actuator ASSY and connected to the skid control computer.

G12590953Courtesy of SUBARU OF AMERICA, INC.
Diagnostic codes DTC detecting conditions Faulty part
C1246
  • Voltage of the sensor signal is outside the specified range.
  • The offset value of the sensor signal is outside the specified range.

  • STOP fuse
  • Stop light switch circuit
  • Wiring harness and connector
  • Brake actuator ASSY (master cylinder pressure sensor circuit)
  • Skid control computer (brake actuator ASSY)
