Front Regulator and Motor Assembly: Removal

  1. Disconnect the ground terminal from battery and wait for at least 60 seconds before starting work. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .
  2. Remove the trim panel - front door. Refer to EXTERIOR/INTERIOR TRIM>DOOR TRIM>REMOVAL>FRONT DOOR .
  3. Remove the front sealing cover. Refer to EXTERIOR BODY PANELS>SEALING COVER>REMOVAL>FRONT SEALING COVER .
  4. Remove the glass assembly - front door. Refer to GLASS/WINDOWS/MIRRORS>FRONT DOOR GLASS>REMOVAL>FRONT DOOR GLASS .

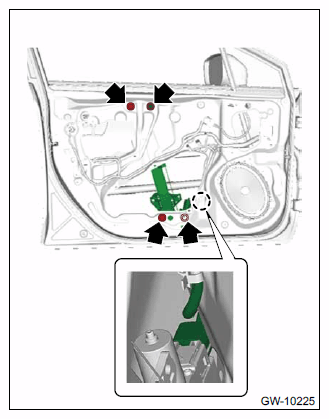

  5. Remove the regulator and motor assembly - front.
    1. Disconnect the motor - front connector.
    2. Remove the bolts, and then remove the regulator and motor assembly - front.
    G11246116Courtesy of SUBARU OF AMERICA, INC.
