Rear Gate Glass: Installation

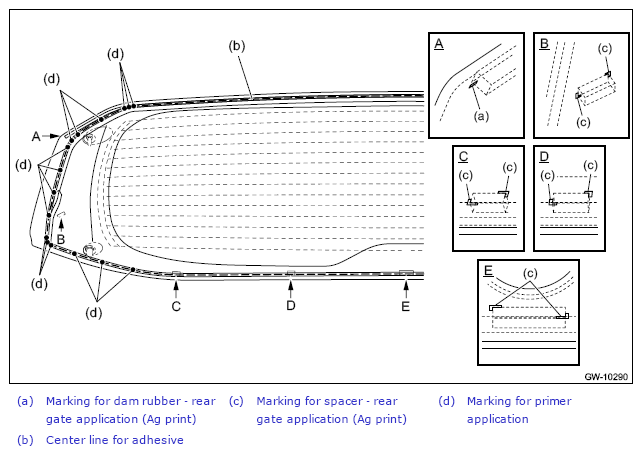

NOTE: Use the markings on the glass to apply adhesive and primer, and to install the dam rubber - rear gate and the spacer - rear gate.
G13234844Courtesy of SUBARU OF AMERICA, INC.
  1. Fabricate the cartridge nozzle tip as shown and set the sealant gun with the adhesive.
    G13234845Courtesy of SUBARU OF AMERICA, INC.
  2. Smoothen and clean the adhesive surfaces of the glass - rear gate and body using the same procedures as for the glass - front window. Refer to GLASS/WINDOWS/MIRRORS>WINDSHIELD GLASS>INSTALLATION .
  3. Attach the dam rubber - rear gate to the glass - rear gate.

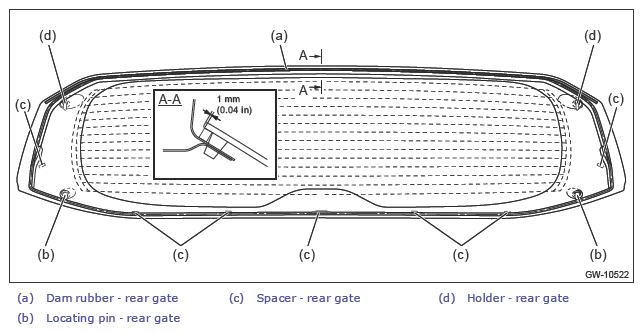

    G13234846Courtesy of SUBARU OF AMERICA, INC.
  4. Install the glass - rear gate.
    1. Apply the primer to the adhesive surface of glass - rear gate side and body side using sponge.
    2. Apply adhesive to the glass - rear gate end back surface.
      CAUTION: Do not apply primer to adhesive.

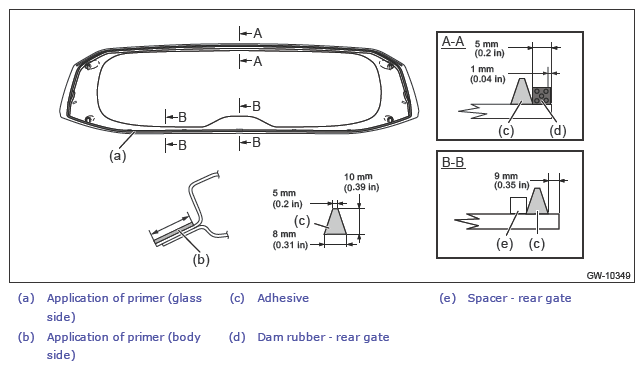

      G13234847Courtesy of SUBARU OF AMERICA, INC.
    3. Attach the clip to the holder - rear gate of the glass - rear gate.
    4. Insert the locating pins - rear gate into the rear gate panel holes, and install the glass - rear gate.
    5. Lightly press the entire perimeter of the glass - rear gate for tight fit.
    6. Make flush the adhesive surface jutted out using spatula.
  5. After completion of all work, allow the vehicle to stand for about 24 hours.
    NOTE:
    • When opening/closing the door after the glass - rear gate was bonded, always lower the glass assembly - door first, and then open/close it carefully.
    • Move the vehicle slowly.
    • For minimum drying time and vehicle standing time before driving after bonding, follow instructions or instruction manual from the adhesive manufacturer.
  6. Connect the rear defogger connector.
  7. Install the motor assembly - rear wiper and the arm assembly - rear wiper. Refer to WIPER AND WASHER SYSTEMS>REAR WIPER MOTOR>INSTALLATION .

    Tightening torque:

    Motor assembly - rear wiper and arm assembly - rear wiper: Refer to WIPER AND WASHER SYSTEMS>GENERAL DESCRIPTION>COMPONENT>REAR WIPER .

  8. Install the roof spoiler. Refer to EXTERIOR/INTERIOR TRIM>ROOF SPOILER>INSTALLATION .
  9. Install the trim panel - rear gate. Refer to EXTERIOR/INTERIOR TRIM>REAR GATE TRIM>INSTALLATION .
  10. Connect the battery ground terminal. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .
  11. After curing of adhesive, pour the water on external surface of vehicle to check that there are no water leaks.
NOTE: When a vehicle is returned to the user, tell him or her that the vehicle should not be subjected to heavy impact for at least three days.
