Relay and Fuse: Location
- Except for hybrid model

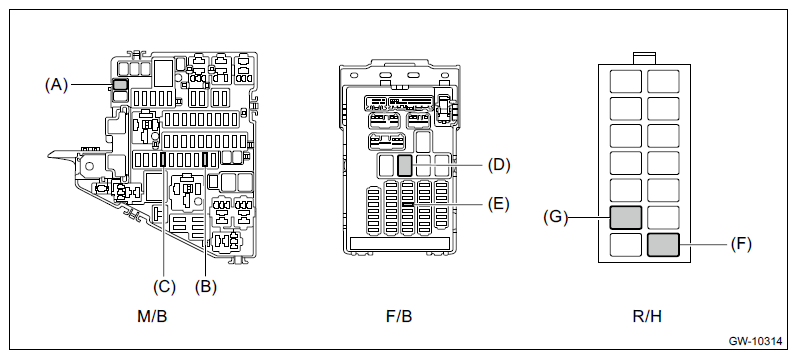

Main fuse box (M/B) SBF Fuse (power window) (A) Fuse 25 A (rear defogger, mirror heater) (B) Fuse 10 A (wiper deicer) (C) Fuse & relay box (F/B) Power window relay (D) Fuse 7.5 A (remote control mirror) (E) Relay holder (R/H) Rear defogger relay
Mirror heater relay(F) Wiper deicer relay (G) - Hybrid model
| Main fuse box (M/B) | SBF Fuse (power window) | (A) |
| Fuse 25 A (rear defogger, mirror heater) | (B) | |
| Fuse 10 A (wiper deicer) | (C) | |
| Fuse & relay box (F/B) | Power window relay | (D) |
| Fuse 7.5 A (remote control mirror) | (E) | |
| Relay holder (R/H) | Wiper deicer relay | (F) |
| Rear defogger relay Mirror heater relay |
(G) |
NOTE:
For other related fuses, refer to the wiring diagram.
- Impreza model: Refer to WIRING SYSTEM (IMPREZA MODEL)>POWER SUPPLY CIRCUIT .
- Crosstrek model (except for hybrid): Refer to WIRING SYSTEM (CROSSTREK MODEL (EXCEPT FOR HEV))>POWER SUPPLY CIRCUIT .
- Crosstrek hybrid model: Refer to WIRING SYSTEM (CROSSTREK MODEL (HEV))>POWER SUPPLY CIRCUIT .
