Outer Mirror Assembly: Disassembly

CAUTION: When removing the mirror - repair, be careful not to damage the back surface of mirror - repair with a flat tip screwdriver.

Operate the remote control mirror switch to face the mirror - repair inside.
Disconnect the ground terminal from battery. Refer to REPAIR CONTENTS>REPAIR CONTENTS>NOTE>BATTERY>GROUND TERMINAL REMOVAL OR INSTALLATION .

Remove the mirror - repair.

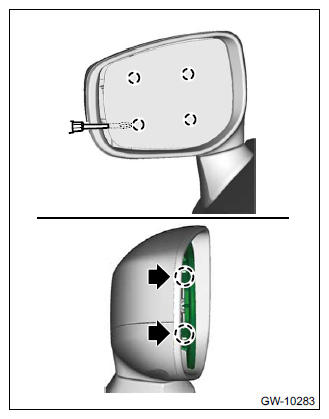

Insert a flat tip screwdriver or similar tool into the tool insertion opening shown in the figure, release the engagement and take the mirror - repair outward to remove.

Courtesy of SUBARU OF AMERICA, INC.

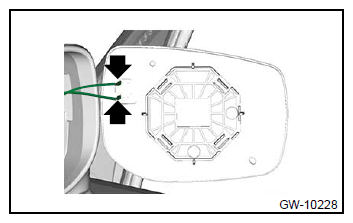

Disconnect the connector. (Model with mirror heater)

Courtesy of SUBARU OF AMERICA, INC.

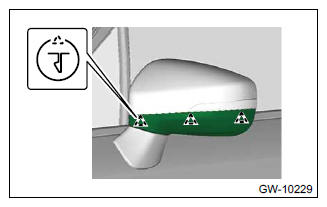

Release the claws, and then remove the cover - cap outer mirror lower.

Courtesy of SUBARU OF AMERICA, INC.

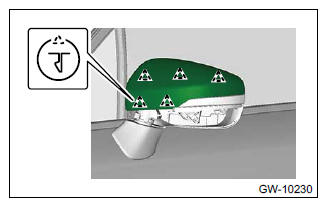

Release the claws, and then remove the cover - cap outer mirror.
CAUTION: Be careful not to apply excessive force when removing the cover - cap outer mirror, as the lower hooks may become damaged.

Courtesy of SUBARU OF AMERICA, INC.

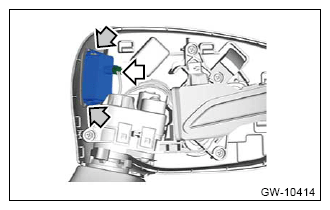

Remove the Blind Spot Detection/Rear Cross Traffic Alert system indicator. (Model with Blind Spot Detection/Rear Cross Traffic Alert system)
1. Disconnect the connector.
2. Release the claws and then remove the Blind Spot Detection/Rear Cross Traffic Alert system indicator.
Courtesy of SUBARU OF AMERICA, INC.

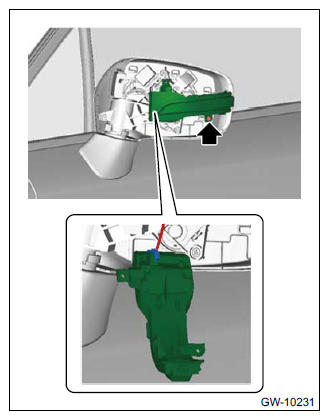

Remove the light assembly - side turn mirror. (Model with side turn signal light)
1. Remove the screws and pull out the light assembly - side turn mirror to the front of the vehicle.
2. Disconnect the connector and remove the light assembly - side turn mirror.
Courtesy of SUBARU OF AMERICA, INC.
