System Block Diagram

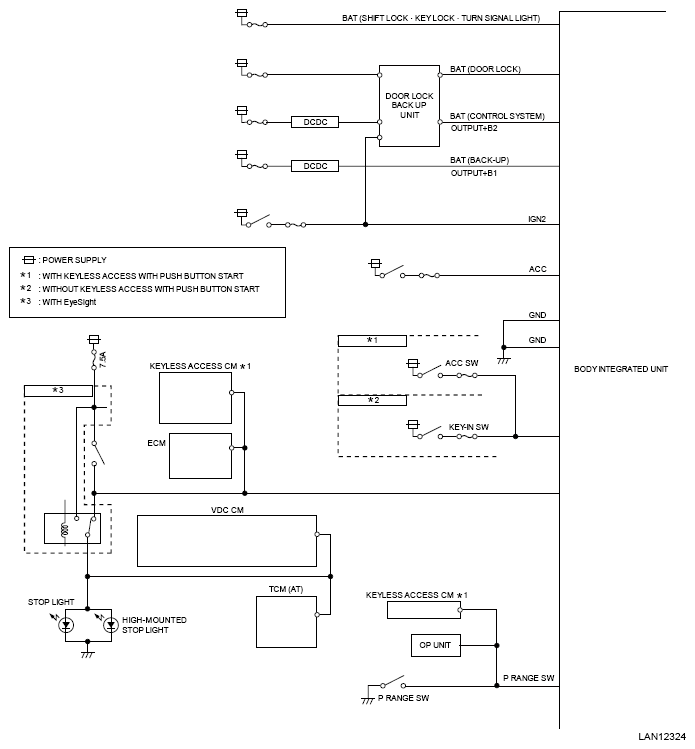

G13229036

Courtesy of SUBARU OF AMERICA, INC.

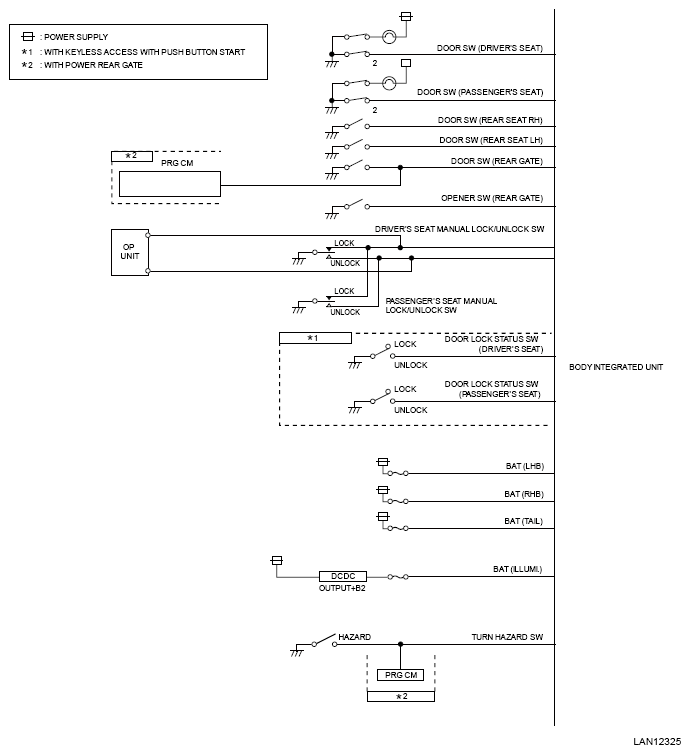

G13229037

Courtesy of SUBARU OF AMERICA, INC.

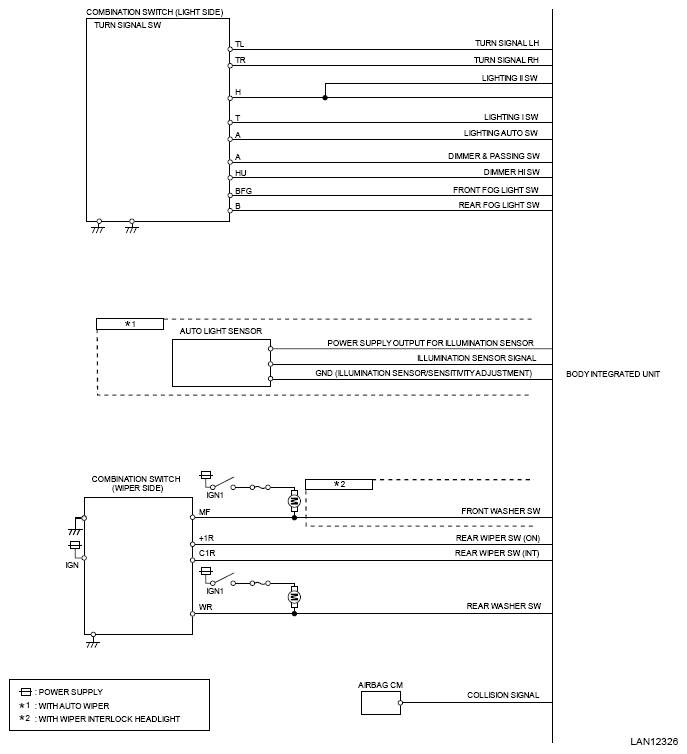

G13229038

Courtesy of SUBARU OF AMERICA, INC.

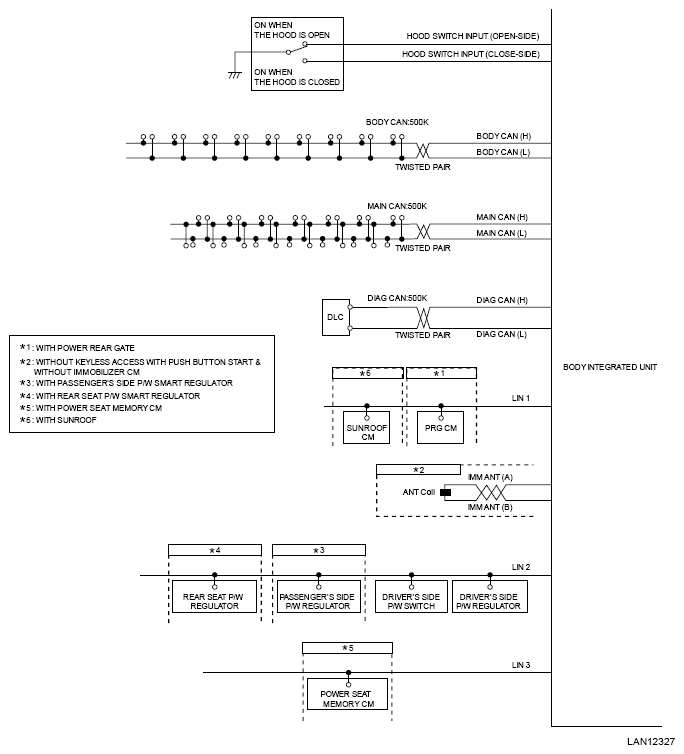

G13229039

Courtesy of SUBARU OF AMERICA, INC.

G13229040

Courtesy of SUBARU OF AMERICA, INC.

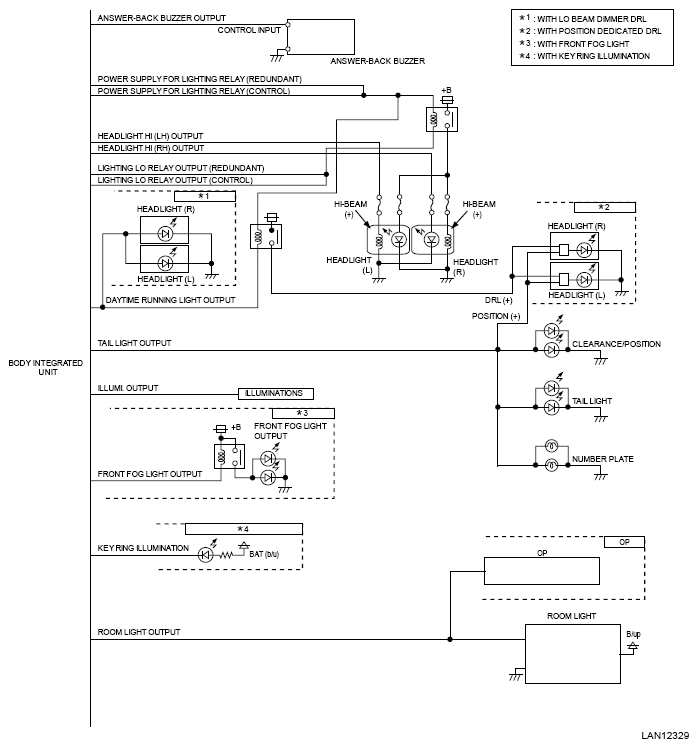

G13229041

Courtesy of SUBARU OF AMERICA, INC.

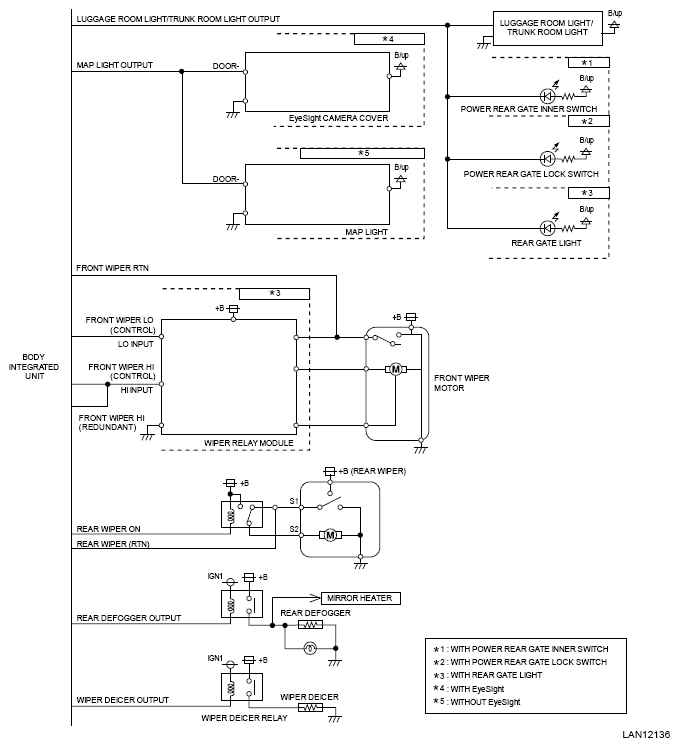

G13229042

Courtesy of SUBARU OF AMERICA, INC.

G13229043

Courtesy of SUBARU OF AMERICA, INC.
