Steering Lock

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the immobilizer antenna assembly. Ref. to SECURITY AND LOCKS>IMMOBILIZER ANTENNA>REMOVAL .
  3. Remove the screws, and remove the key interlock module.
    G13226914Courtesy of SUBARU OF AMERICA, INC.
  4. Replace the key lock assembly.
    1. Insert the key into the key lock assembly, and turn the key to the ACC position.
    2. Release the lock by inserting a flat tip screwdriver from the steering lock frame hole (A).
    3. Pull the key lock assembly until the key lock assembly claws touch the steering lock frame stopper (B).

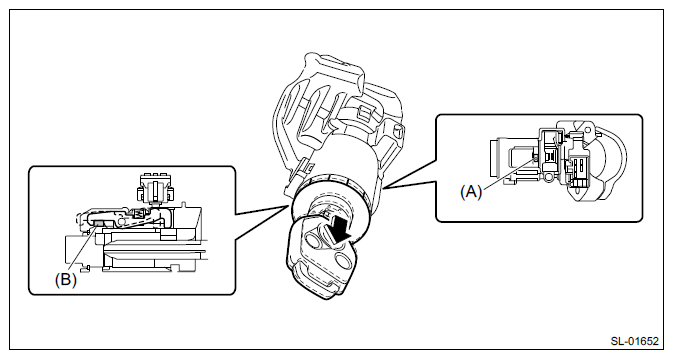

      G11246355Courtesy of SUBARU OF AMERICA, INC.
    4. Insert a flat tip screwdriver from the steering lock frame hole (C), and release the claws to pull out the key lock assembly.

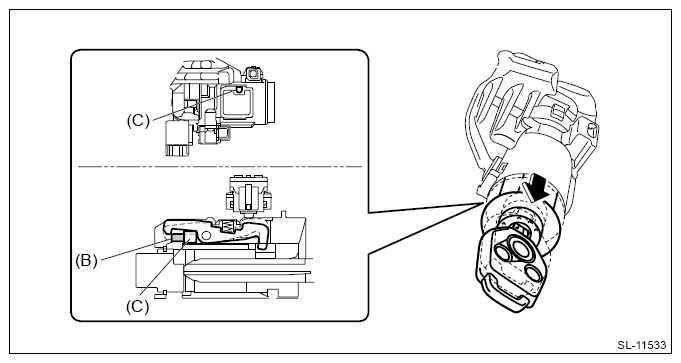

      G13226916Courtesy of SUBARU OF AMERICA, INC.
    5. Install the key lock assembly in the reverse order of removal.
  5. Install the key interlock module.
  6. Install the immobilizer antenna assembly. Ref. to SECURITY AND LOCKS>IMMOBILIZER ANTENNA>INSTALLATION .
  7. Connect the battery ground terminal. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
