Power Seat System: Inspection: Note: Notes

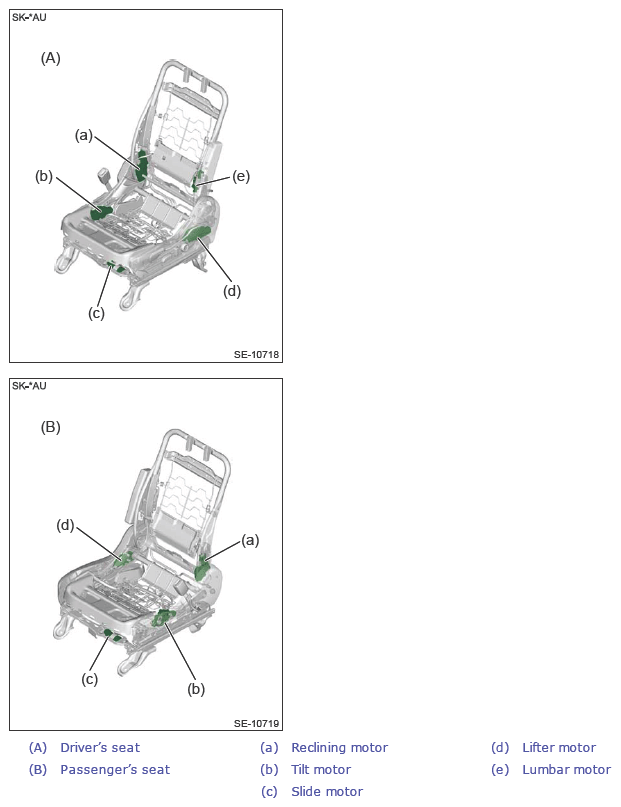

MOTOR LAYOUT

G13226829

Courtesy of SUBARU OF AMERICA, INC.
