Remote Control Back Rest Actuator

  1. Remove the rear seat backrest. Ref. to SEATS>REAR SEAT>REMOVAL .

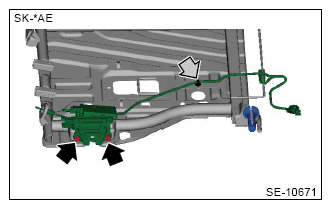

  2. Remove the lock actuator assembly backrest rear. Ref. to SEATS>REAR SEAT>DISASSEMBLY .
CAUTION: Pay attention to the burrs on the panel edge.
G13226816Courtesy of SUBARU OF AMERICA, INC.
