Power Rear Gate Control Module: Removal
- Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Remove the trim panel - rear apron LH. Ref. to EXTERIOR/INTERIOR TRIM>REAR QUARTER TRIM>REMOVAL
- Remove the power rear gate control module (PRG control module).

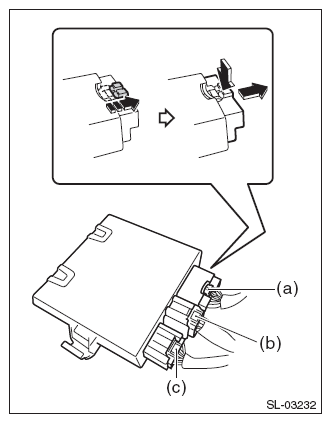

- Disconnect the connectors in the following order.
- Disconnect the connector (b).
- Pull the slide lock in the arrowed direction, and disconnect the connector (a) by pressing in the lock.
- Disconnect the connector (c).NOTE: When the connectors are not disconnected in the sequence, a diagnosis code (DTC) may be detected.

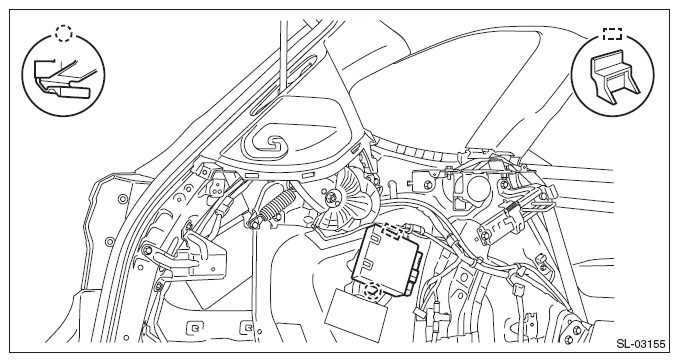

- Release the lock and hook, and remove the power rear gate control module (PRG control module).
- Disconnect the connectors in the following order.
