Front Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

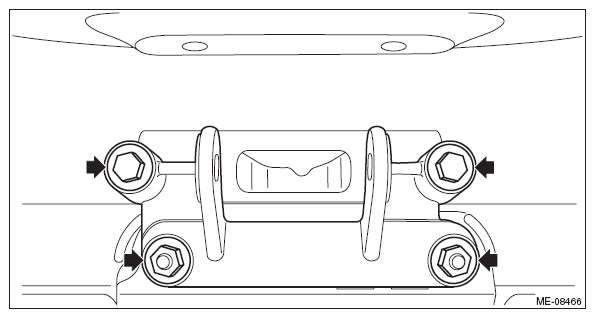

Install the bracket to the cradle.
Tightening torque:

65 N.m (6.6 kgf-m, 47.9 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

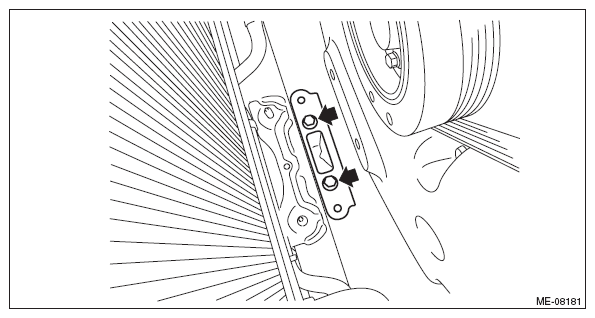

Install the front mounting bracket to the cradle and the bracket.
Tightening torque:

60 N.m (6.1 kgf-m, 44.3 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the front cushion rubber. Ref. to MECHANICAL (H6DO)>Engine Mounting>INSTALLATION>FRONT CUSHION RUBBER .
Install the radiator fan and fan motor assembly. Ref. to COOLING (H6DO)>RADIATOR FAN AND FAN MOTOR ASSEMBLY>INSTALLATION .
