Engine Mounting

WARNING: This page is about a different variant/trim than selected.

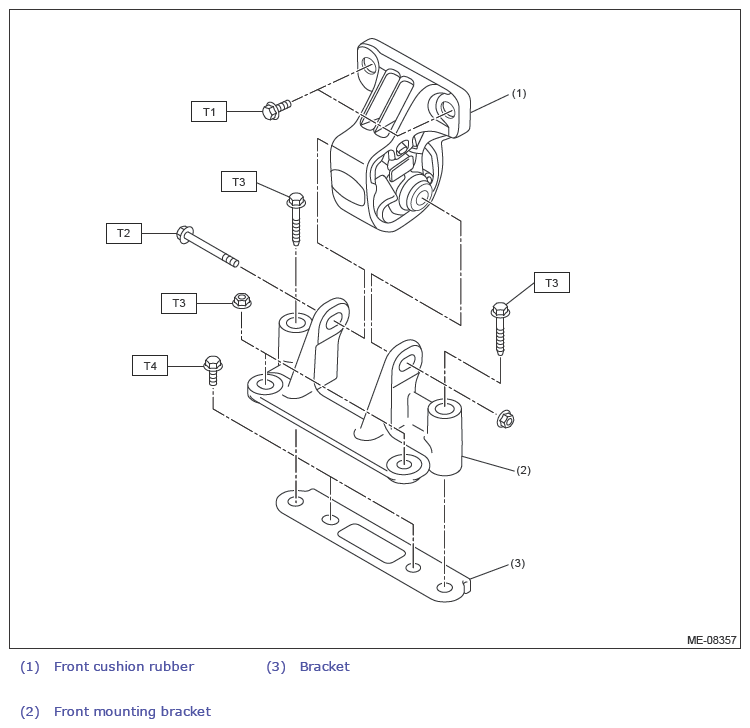

Fig 1: Engine Mounting Components (With Torque Specification)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 25 (2.5, 18.4)

T2: 45 (4.6, 33.2)

T3: 60 (6.1, 44.3)

T4: 65 (6.6, 47.9)
