Tie-down range

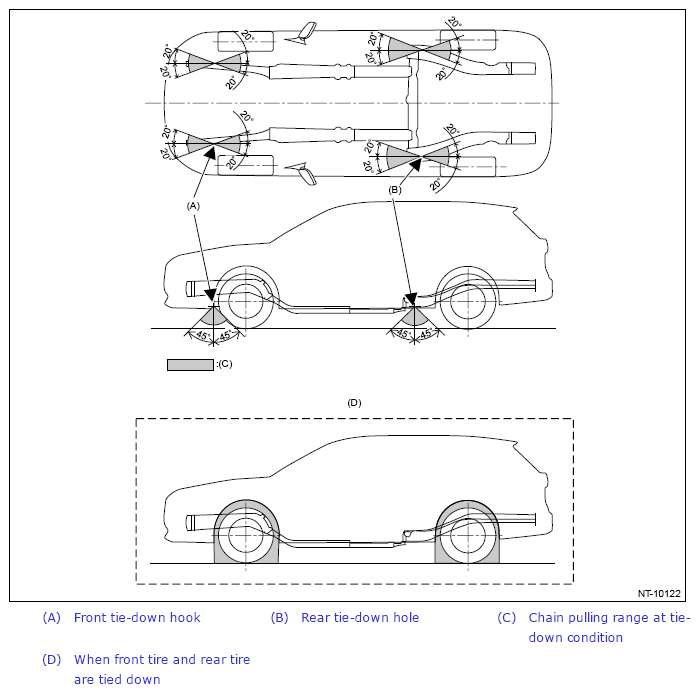

For ground transportation

CAUTION: When the vehicle is tied down from vehicle inside, hook the hooks of tie-down chain on the rear tie-down holes from vehicle inside. When the vehicle is tied down from vehicle outside, hook the hooks of tie-down chain on the rear tie-down hooks from vehicle outside.

NOTE: Transportation with the front tire and rear tire tie-down is available.

Courtesy of SUBARU OF AMERICA, INC.

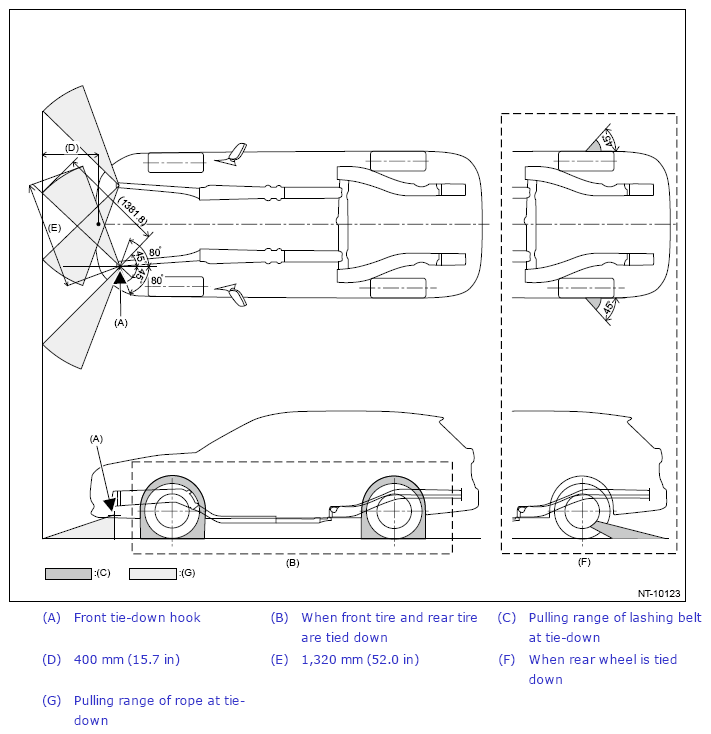

For sea transportation

Courtesy of SUBARU OF AMERICA, INC.

CAUTION:

Never use the rear tie-down hole.
For rear tie-down, use the rear tire or rear wheel.
Tie-down procedure should be followed as much as reasonably possible depending on the deck condition, however, lashing belt and vehicle must not contact each other. When the wheel is tied down, observe the following instructions.
1. Tie-down range must be within the backward of rear wheel as shown in the figure.
2. Wheel tie-down should be used only during sea transportation, and lashing belt should not contact air valve while tie-down. Be careful not damage the wheel and vehicle.
3. Maximum tie-down load to each lashing belt is 5, 000 N (510 kgf, 1, 124 lbf).
4. For steel wheel, do not tie down wheels.
