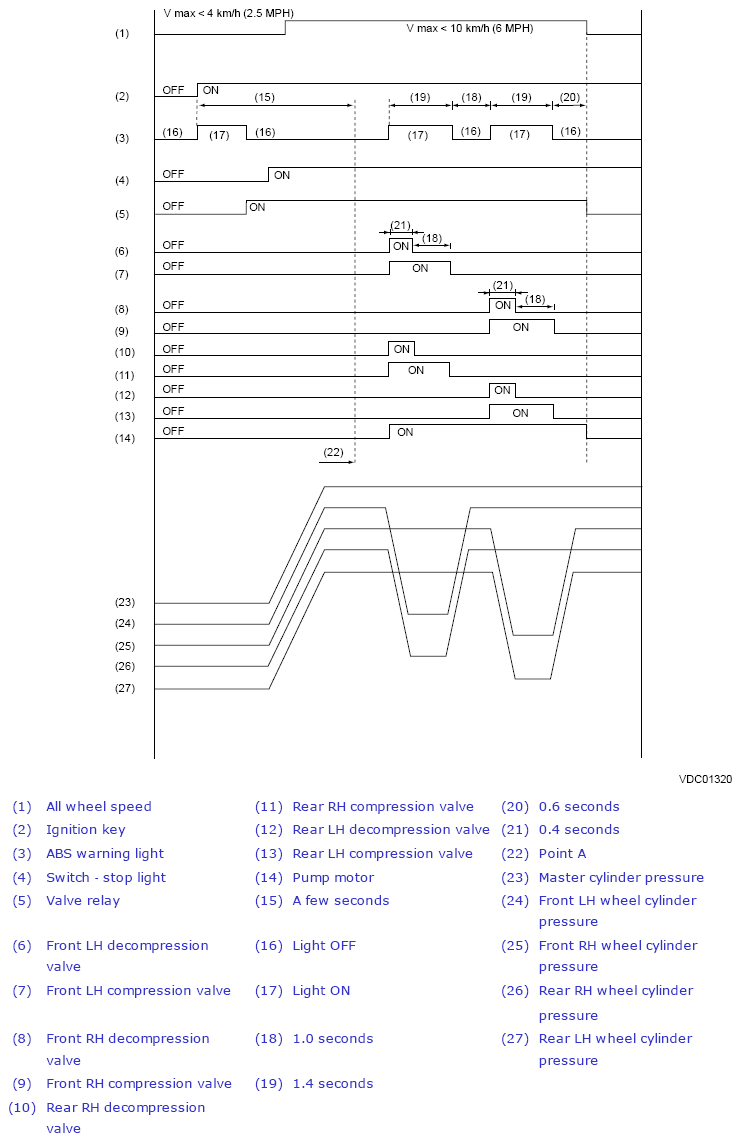

Conditions For ABS Sequence Control
NOTE:
The control operation starts at point A.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
