Switch Assembly Operation

CAUTION: Perform the inspection in a short period of time. (Within 3 to 5 seconds)

Loosen the nut which holds the cable to the M terminal.
NOTE: This procedure is required to facilitate the cable removal from the M terminal.

Courtesy of SUBARU OF AMERICA, INC.

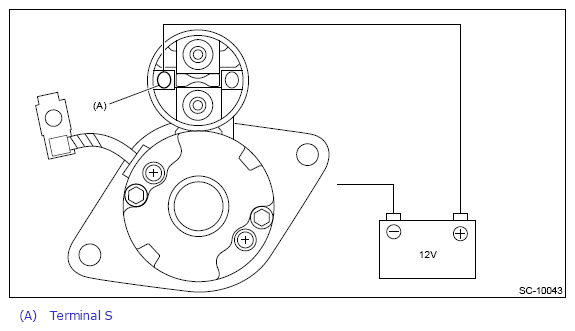

Connect the battery positive terminal to the switch assembly S terminal, and connect the battery negative terminal to the starter body. Then, if the pinion protrudes, it is normal.
NOTE: The starter motor may rotate while the pinion protrudes. This occurs due to current that flows to the motor via pull-in coil. This is not a problem.

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the cable from the M terminal. Check that the pinion is being protruded at this time.
CAUTION: Hold the disconnected cable so that it does not contact the terminal or wiring.
Disconnect the battery negative terminal from the starter body. Then, if the pinion returns to its original position, it is normal.

Courtesy of SUBARU OF AMERICA, INC.
