RH Side

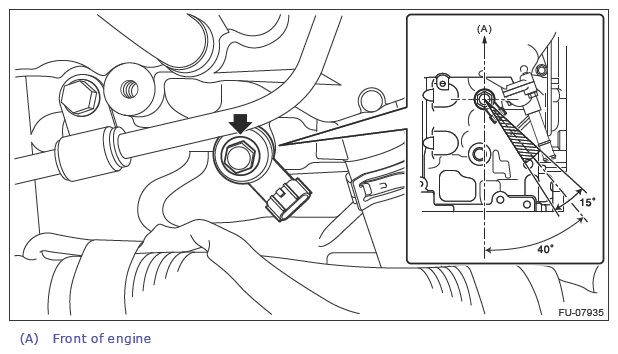

Install the knock sensor to the cylinder block.
NOTE: The knock sensor should be installed so that the center of the connector is positioned at a 32.5 - 47.5° angle relative to the rear of engine.

Tightening torque:

24 N.m (2.4 kgf-m, 17.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Connect the connector to the knock sensor.

Courtesy of SUBARU OF AMERICA, INC.
Install the fuel pipe insulator No. 3. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>FUEL INSULATOR>INSTALLATION>FUEL PIPE INSULATOR NO. 3 .
Install the intake manifold. Refer to FUEL INJECTION (FUEL SYSTEMS) (EXCEPT FOR STI)>INTAKE MANIFOLD>INSTALLATION .
Connect the ground terminal to battery sensor. Refer to NOTE>NOTE>BATTERY .
Install the collector cover. Refer to INTAKE (INDUCTION) (EXCEPT FOR STI)>COLLECTOR COVER>INSTALLATION .
