Section 16 (Starting System & Charging System (STI)): Starter: Installation
WARNING: This page is about a different variant/trim than selected.
Install in the reverse order of removal.
NOTE:

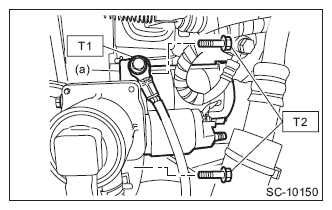

Tighten the starter and cable stay (a) together using the upper bolt securing the starter.
Tightening torque:
T1: 14 N.m (1.4 kgf-m, 10.3 ft-lb)
T2: 50 N.m (5.1 kgf-m, 36.9 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|
Tightening torque:
11 N.m (1.1 kgf-m, 8.1 ft-lb)
 Courtesy of SUBARU OF AMERICA, INC.
|
